Setup CLI — Pico W & Display First-Time Setup¶

An interactive Python CLI that walks through the entire Pico W development environment setup — from installing the C/C++ ARM toolchain to flashing your first Hello World onto the e-ink display.

This project runs entirely in C — no MicroPython, no CircuitPython. C gives us direct hardware control, deterministic timing, and the full performance of the RP2040's dual Cortex-M0+ cores.

Target audience: Someone with the hardware in hand and zero prior embedded development experience.

Platform: Linux (Arch/CachyOS — Debian/Ubuntu alternatives noted where they differ).

Usage¶

python3 setup.py              # interactive step-by-step walkthrough
python3 setup.py --status     # show current setup state
python3 setup.py --step N     # jump to step N
python3 setup.py --list       # list all steps
python3 setup.py --test-setup # install testing dependencies (tk, pytest, Playwright)

No external dependencies required — runs on Python 3.9+ with only the standard library.

Help Output¶

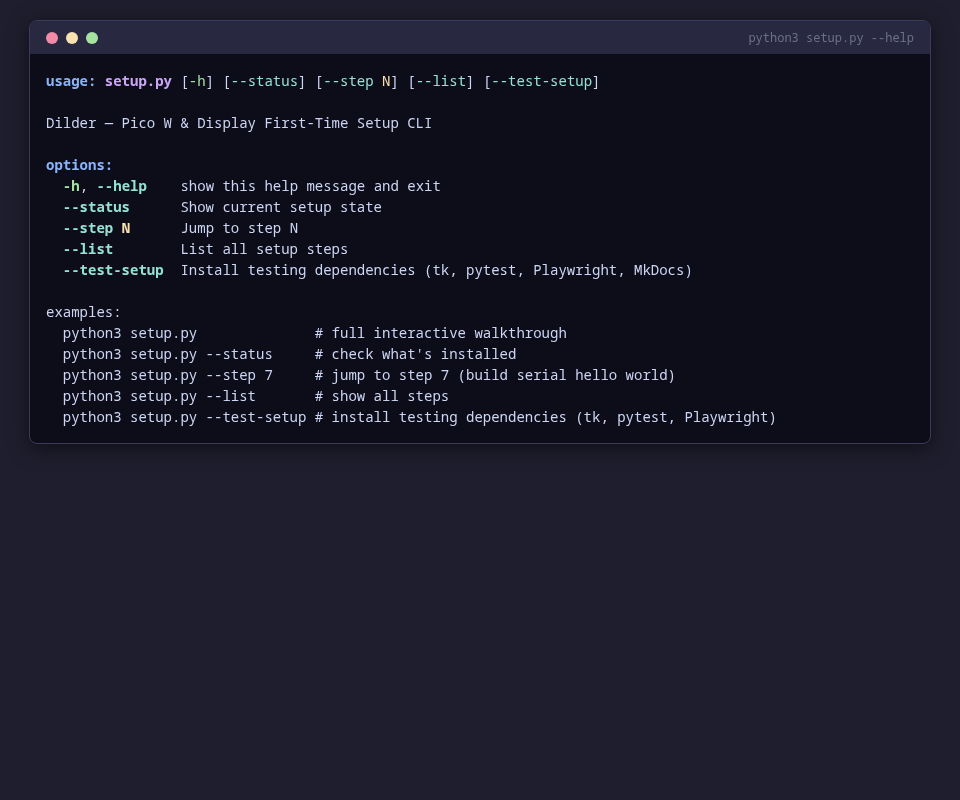

Setup CLI help output

Step List¶

Use --list to see all 15 steps and their completion status:

Setup CLI step list

What Each Step Does¶

The script walks through 15 steps, split into three checkpoints.

Checkpoint 1 — Serial Hello World (Steps 1–9)¶

Verifies your toolchain works end-to-end without any display wiring.

Step	Name	Automated?	Description
1	Check Prerequisites	Yes	Detects your Linux distro, verifies git, cmake, Python, Tkinter, pyserial
2	Install ARM Toolchain	Yes	Runs the correct `pacman`/`apt`/`dnf` command for your distro to install `arm-none-eabi-gcc`, cmake, ninja
3	Clone Pico SDK	Yes	Clones the official `pico-sdk` with submodules to `~/pico/pico-sdk`
4	Set PICO_SDK_PATH	Yes	Appends `export PICO_SDK_PATH=...` to your `.zshrc` or `.bashrc`
5	Serial Port Permissions	Yes	Adds your user to the correct serial group (`uucp` on Arch/CachyOS, `dialout` on Debian/Ubuntu)
6	Install VSCode Extensions	Yes	Installs C/C++, CMake Tools, Serial Monitor, and Cortex-Debug extensions
7	Build Hello Serial	Yes	Copies SDK helper, runs CMake configure + Ninja build for `hello-world-serial`
8	Flash Hello Serial	Semi	Guides you through BOOTSEL mode, auto-detects the RPI-RP2 mount, copies the `.uf2`
9	Verify Serial Output	Manual	Shows how to open a serial monitor, what output to expect, confirms Checkpoint 1

Checkpoint 2 — Display Hello World (Steps 10–14)¶

Connects the Waveshare display and gets pixels on screen.

Step	Name	Automated?	Description
10	Connect the Display	Manual	Step-by-step instructions for sliding the Waveshare HAT onto the Pico W headers
11	Get Waveshare Library	Yes	Clones the Waveshare repo, copies the C driver and font files into the project
12	Build Hello Display	Yes	CMake configure + Ninja build for `hello-world` (the display version)
13	Flash Hello Display	Semi	Same BOOTSEL flow, auto-detects mount, copies `hello_dilder.uf2`
14	Verify Display Output	Manual	Shows expected display text, confirms Checkpoint 2, prints completion banner

Checkpoint 3 — Docker Toolchain (Step 15)¶

Sets up Docker for building standalone firmware from the DevTool.

Step	Name	Automated?	Description
15	Docker Build Toolchain	Yes	Installs Docker, verifies daemon + compose, pre-builds the ARM cross-compilation container

Step-by-Step Walkthrough¶

Step 1 — Check Prerequisites¶

Detects your Linux distribution and verifies that all required tools are installed: git, cmake, Python, Tkinter (for DevTool), and pyserial (for serial communication).

Step 1 — Check Prerequisites

Step 2 — Install ARM Toolchain¶

Installs the ARM cross-compiler (arm-none-eabi-gcc), CMake, and Ninja build system using your distro's package manager.

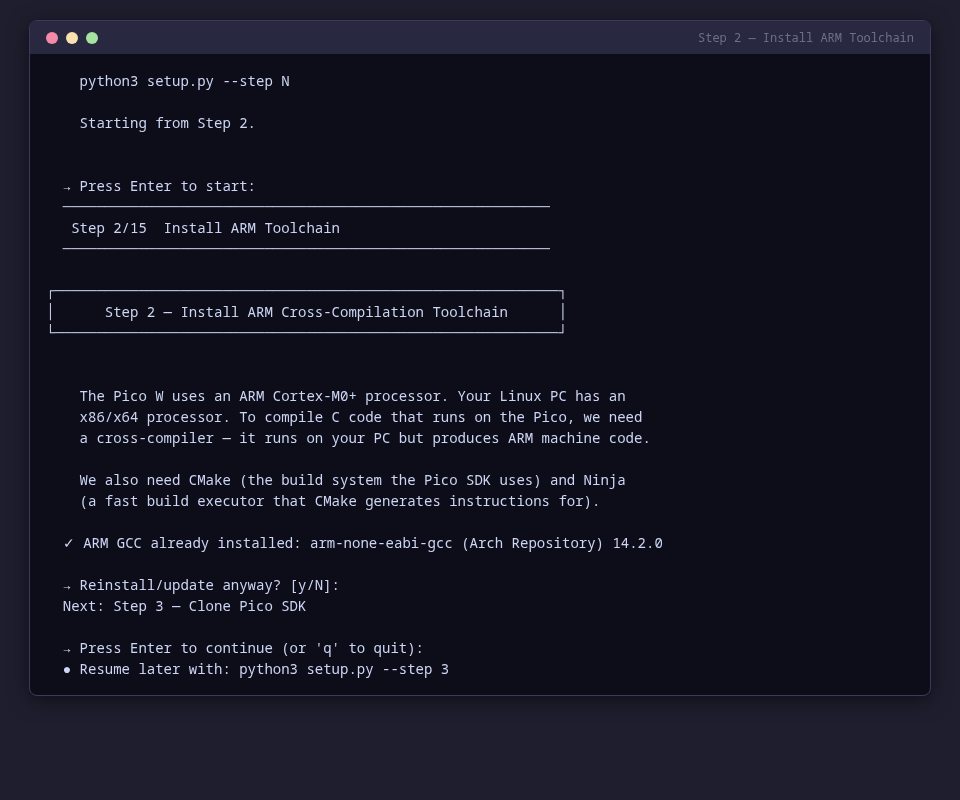

Step 2 — Install ARM Toolchain

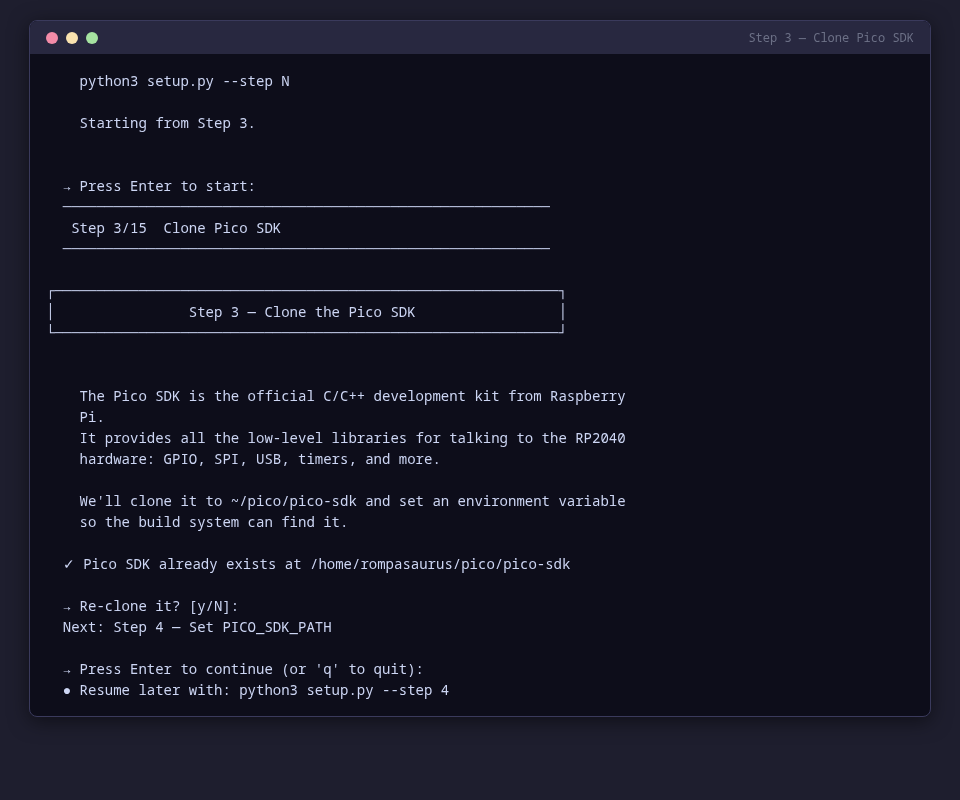

Step 3 — Clone Pico SDK¶

Downloads the official Raspberry Pi Pico C/C++ SDK with all submodules to ~/pico/pico-sdk.

Step 3 — Clone Pico SDK

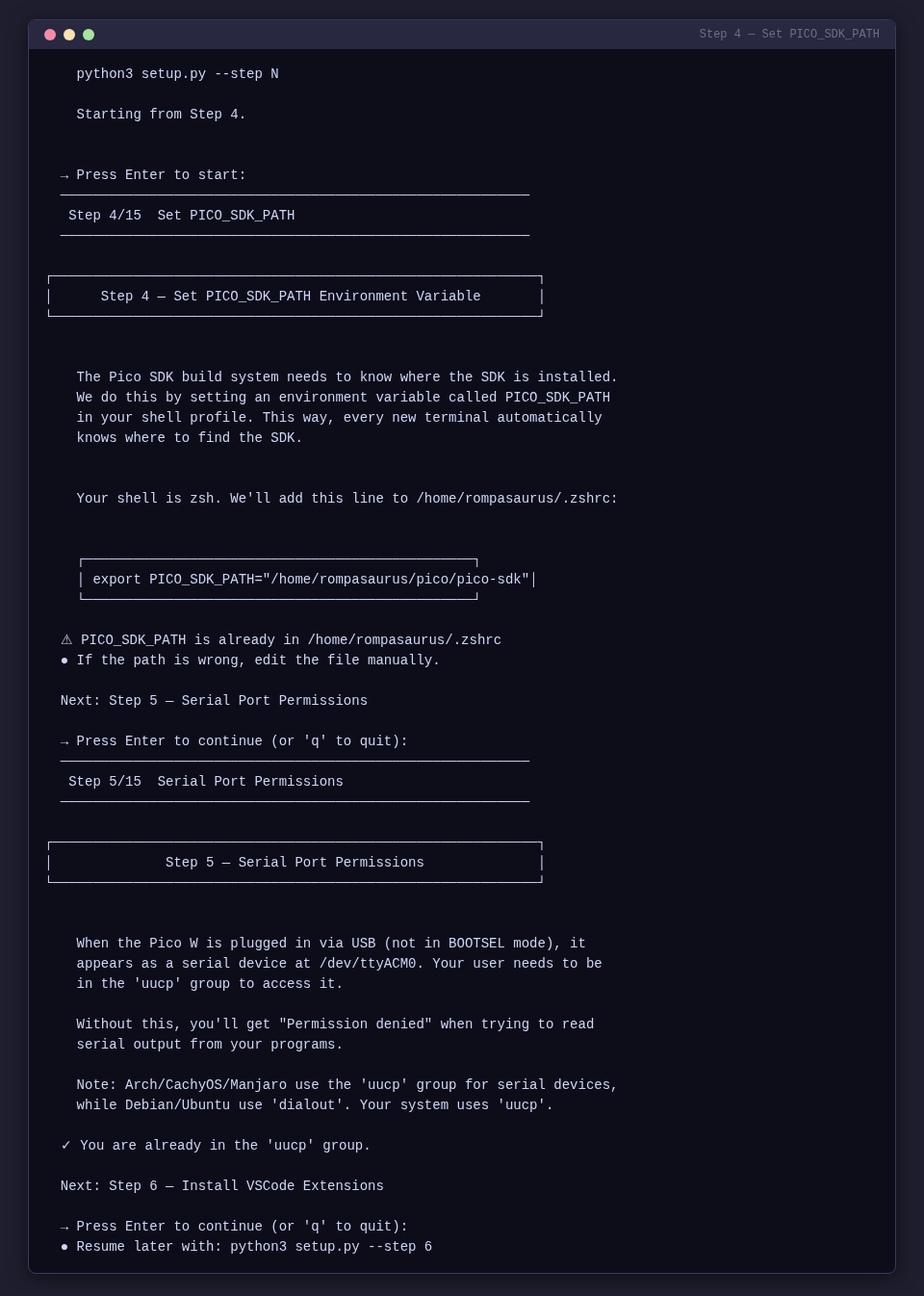

Step 4 — Set PICO_SDK_PATH¶

Configures your shell to find the Pico SDK by appending export PICO_SDK_PATH=... to your .zshrc or .bashrc.

Step 4 — Set PICO_SDK_PATH

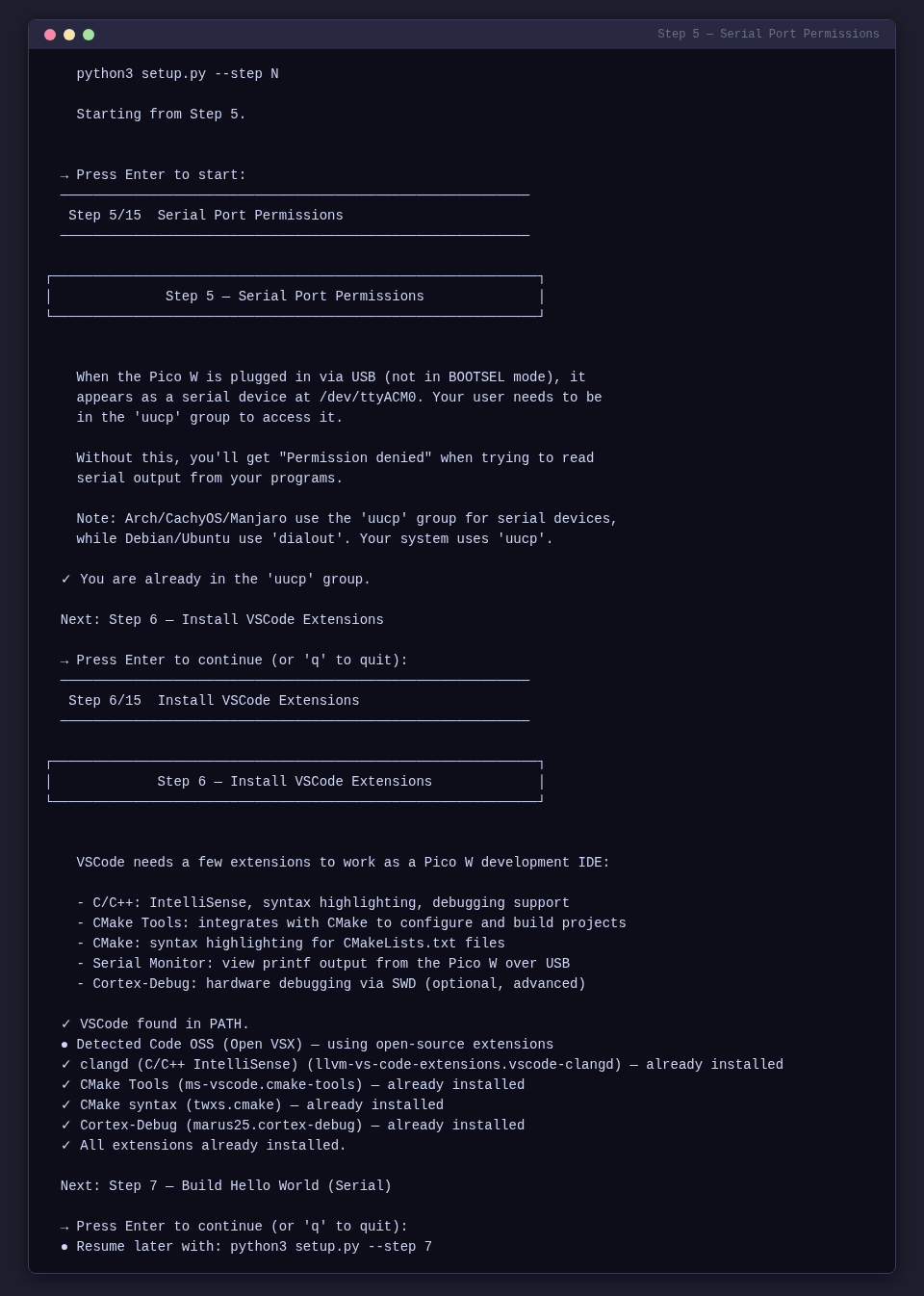

Step 5 — Serial Port Permissions¶

Adds your user to the correct serial group (uucp on Arch/CachyOS, dialout on Debian/Ubuntu) so you can access /dev/ttyACM0 without sudo.

Step 5 — Serial Port Permissions

Step 6 — Install VSCode Extensions¶

Installs development extensions for VSCode. Automatically detects Code OSS (Open VSX marketplace) vs proprietary VSCode (Microsoft marketplace) and installs the appropriate extensions.

Step 6 — Install VSCode Extensions

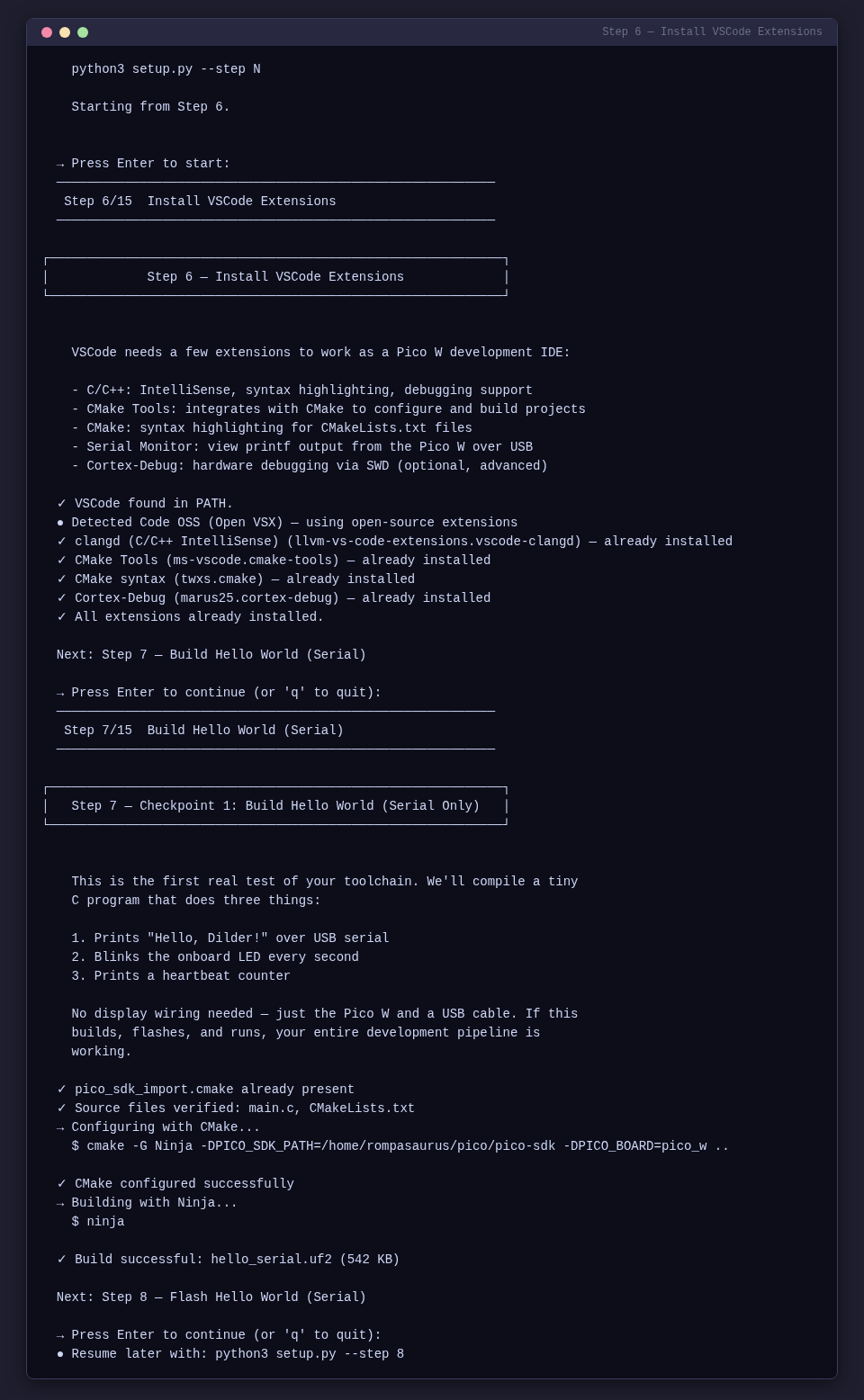

Step 7 — Build Hello World (Serial)¶

Compiles the serial-only test firmware. No display wiring needed — this verifies your toolchain end-to-end.

Step 7 — Build Hello World Serial

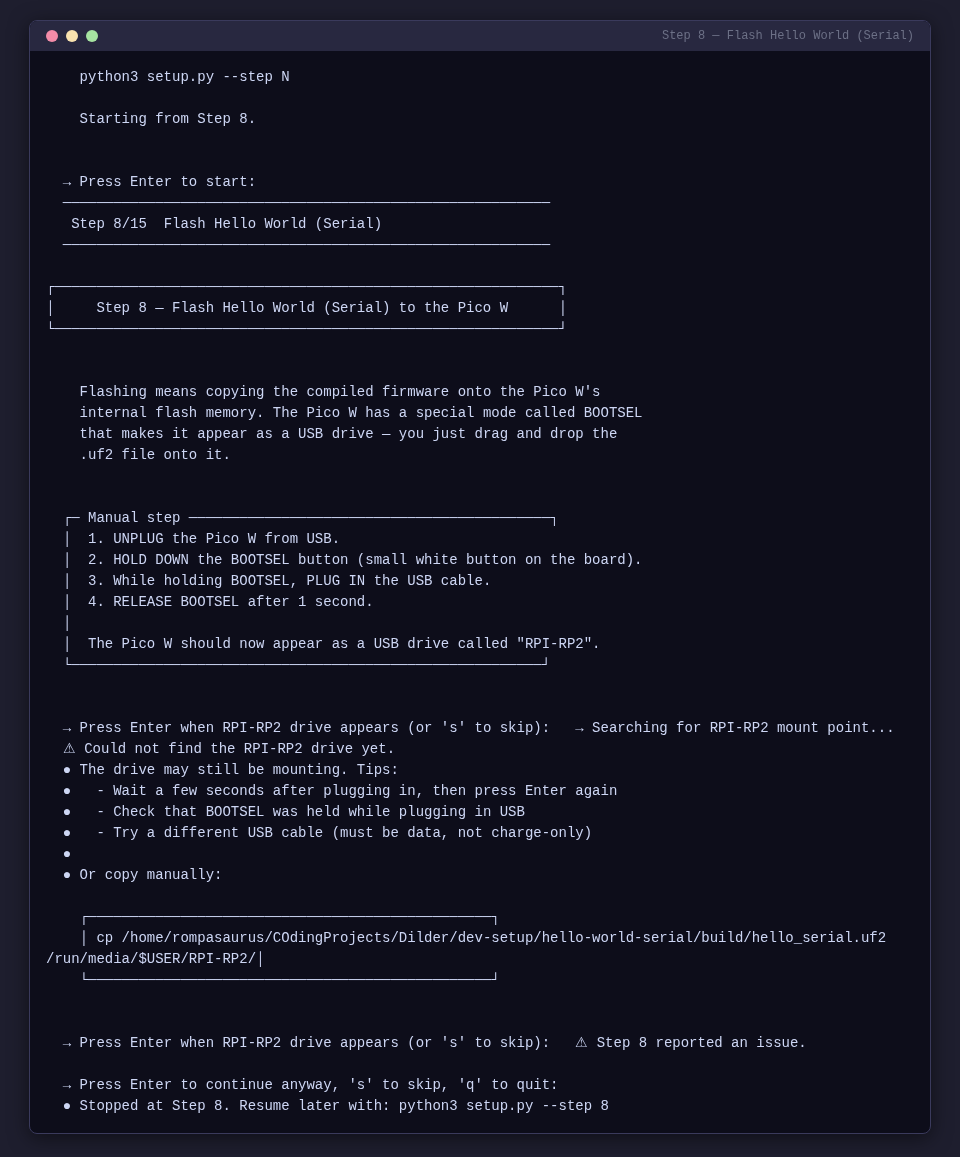

Step 8 — Flash Hello World (Serial)¶

Guides you through putting the Pico W in BOOTSEL mode, auto-detects the RPI-RP2 mount point, and copies the .uf2 firmware file.

Step 8 — Flash Hello World Serial

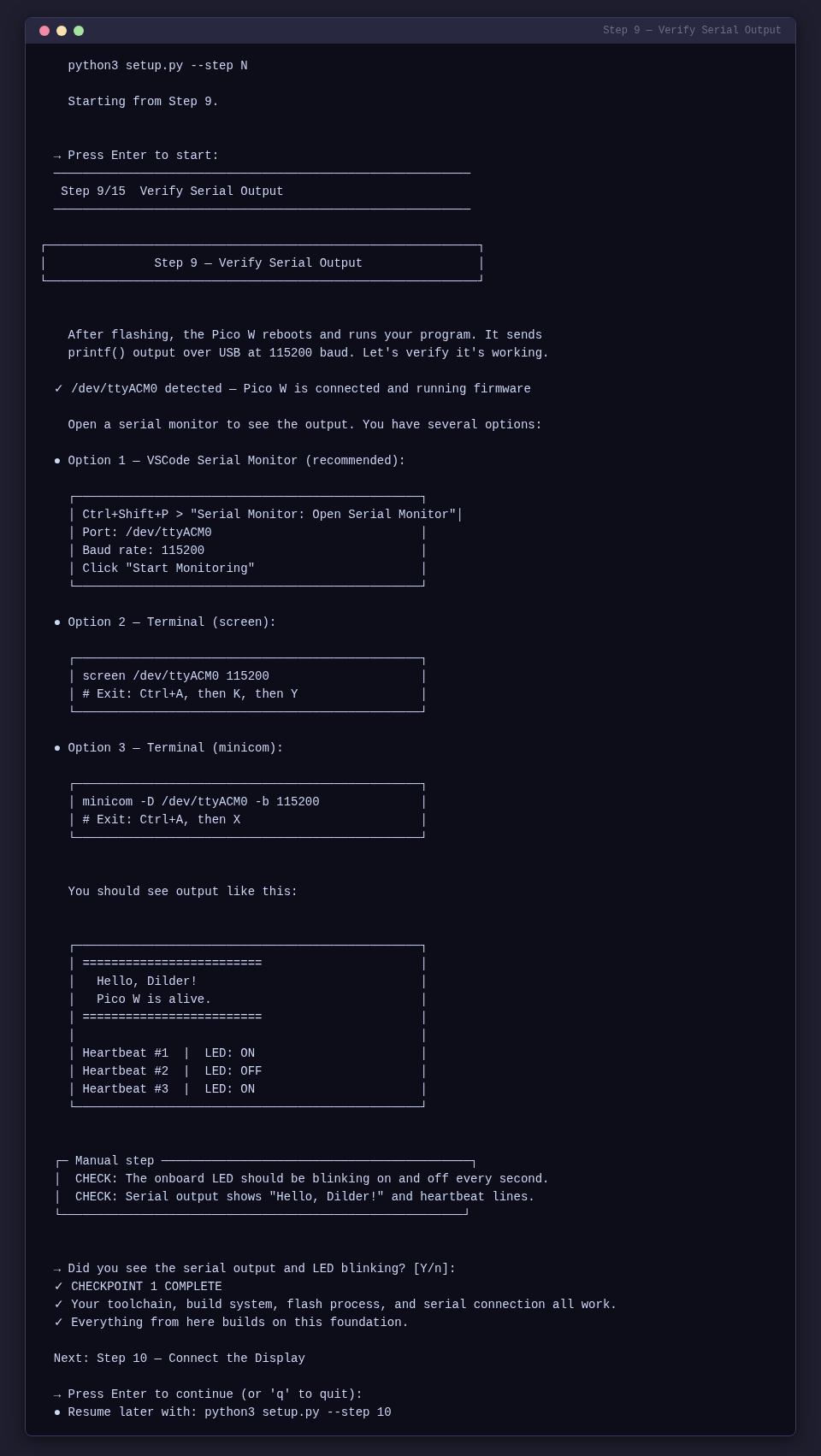

Step 9 — Verify Serial Output¶

Opens a serial monitor and shows you what to expect. Confirms Checkpoint 1 is complete.

Step 9 — Verify Serial Output

Checkpoint 1 — Serial Hello World

At this point your toolchain, build system, flash workflow, and serial communication are all verified. The Pico W is running your firmware and talking back over USB.

Step 10 — Connect the Display¶

Step-by-step instructions with ASCII diagrams for sliding the Waveshare e-Paper HAT onto the Pico W headers. Includes alignment guides and pin verification.

Step 10 — Connect the Display

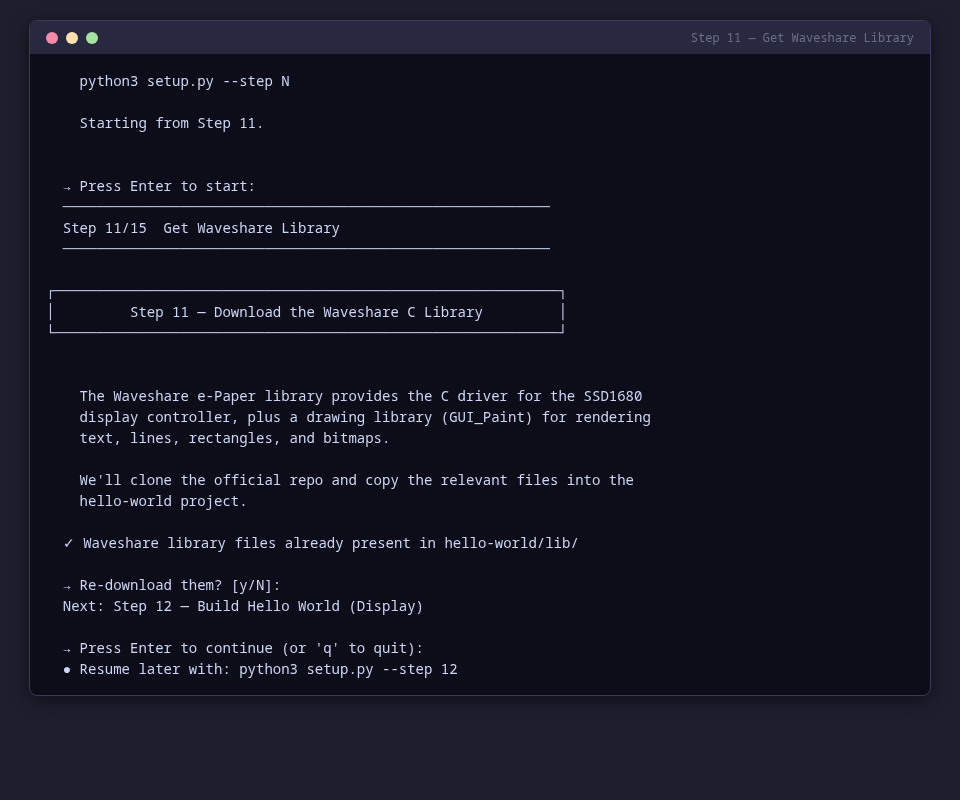

Step 11 — Get Waveshare Library¶

Downloads the Waveshare C display driver and font files, copies them into the project's shared library directory.

Step 11 — Get Waveshare Library

Step 12 — Build Hello World (Display)¶

Compiles the display test firmware using CMake + Ninja with the Waveshare library linked in.

Step 12 — Build Hello World Display

Step 13 — Flash Hello World (Display)¶

Same BOOTSEL flow as Step 8, but flashes the display firmware (hello_dilder.uf2).

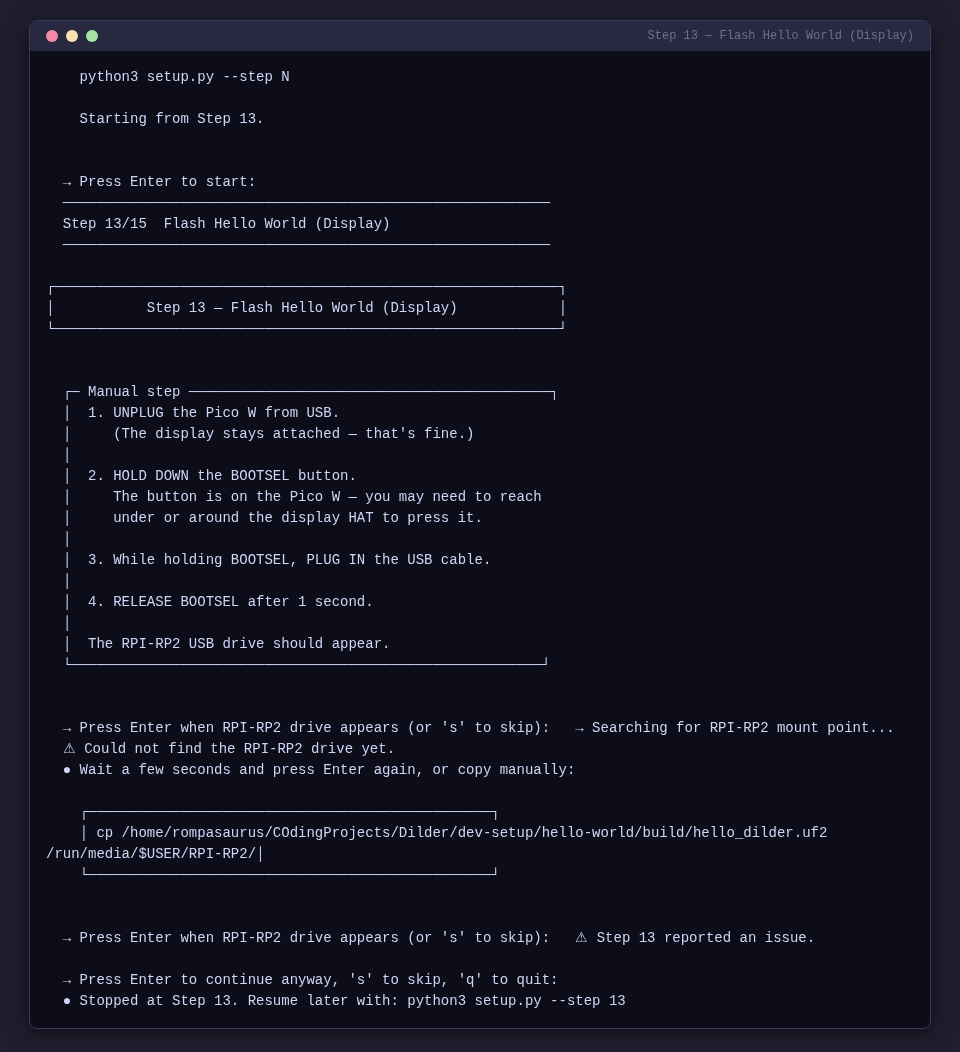

Step 13 — Flash Hello World Display

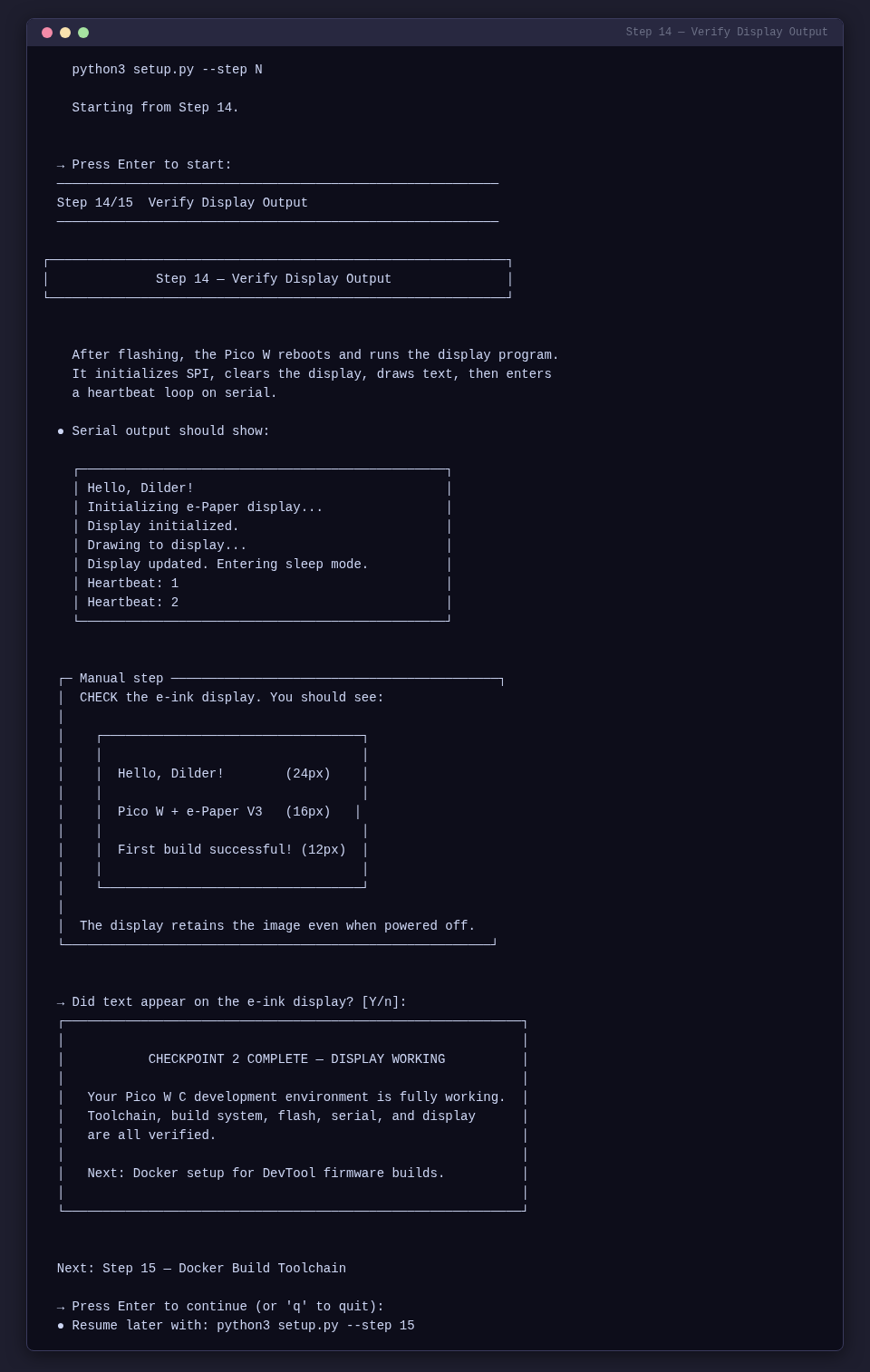

Step 14 — Verify Display Output¶

Confirms text appears on the e-ink display. Shows the expected output and prints the Checkpoint 2 completion banner.

Step 14 — Verify Display Output

Checkpoint 2 — Display Working

Your Pico W C development environment is fully working. Toolchain, build system, flash, serial, and display are all verified.

Step 15 — Docker Build Toolchain¶

Installs Docker, verifies the daemon and docker-compose are available, checks for project build files, and pre-builds the ARM cross-compilation container image.

Step 15 — Docker Build Toolchain

Checkpoint 3 — Setup Finished

Docker toolchain is ready. The DevTool can now build and flash standalone firmware to the Pico W. Launch it with python3 DevTool/devtool.py.

Features¶

Distro detection — automatically detects Arch/CachyOS vs Ubuntu/Debian for package manager commands and serial group names
Resume support — tracks which steps are complete; use --step N to jump to any step
BOOTSEL detection — scans for the RPI-RP2 mount point using findmnt/lsblk with retry for automount delays
Build error reporting — captures both stdout and stderr from CMake/Ninja for clear error output
ANSI terminal UI — colored output with spinners, boxed explanations, and step-by-step progress indicators
Code OSS detection — detects Code OSS (Open VSX) vs proprietary VSCode and installs the correct extensions
Testing setup — --test-setup installs the full test suite dependencies (Tkinter, pytest, Playwright, MkDocs)

Status Dashboard¶

Run python3 setup.py --status to see a snapshot of your entire environment — toolchain, SDK, permissions, VSCode, builds, Docker, and testing framework:

Setup CLI status dashboard

If any step fails, the script explains the issue and lets you retry or skip. You can quit at any time with q or Ctrl+C and resume later with --step N.

Testing Setup¶

Run python3 setup.py --test-setup to install everything needed for the test suite:

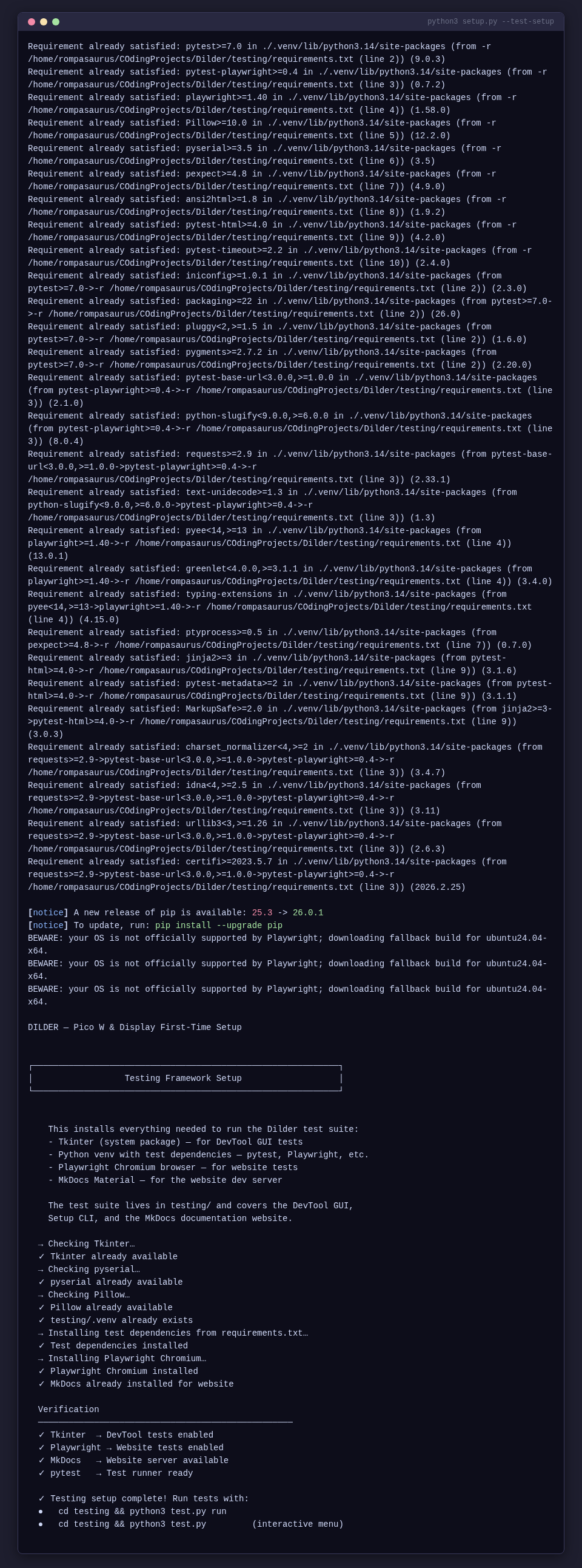

Testing framework setup

This installs:

Tkinter (system package) — for DevTool GUI tests
Python venv with test dependencies — pytest, Playwright, Pillow, pyserial
Playwright Chromium — for website screenshot tests
MkDocs Material — for the documentation site dev server

Hardware Requirements¶

Item	Notes
Raspberry Pi Pico W	With male headers soldered on
Waveshare Pico-ePaper-2.13	SSD1680 driver, Pico-native module — plugs directly onto Pico W
Micro-USB data cable	Must be a data cable, not charge-only — this is the #1 gotcha
Linux PC	Arch/CachyOS, Ubuntu, Debian, or Fedora

No breadboard needed for display

The Pico-ePaper-2.13 has a 40-pin female header that slides directly onto the Pico W's male header pins. No jumper wires required for the display alone — use a breadboard when adding other peripherals (joystick, GPS, etc.).

Software Installed by the Script¶

Tool	Purpose
`arm-none-eabi-gcc`	ARM cross-compiler for the RP2040
`cmake` + `ninja`	Build system used by the Pico SDK
`pico-sdk`	Official Raspberry Pi Pico C/C++ SDK
VSCode extensions	C/C++ (or clangd for Code OSS), CMake Tools, Cortex-Debug
Docker + compose	Container-based ARM cross-compilation for standalone firmware

Understanding the Hardware¶

The Pico W¶

Chip: RP2040 — dual-core ARM Cortex-M0+ at 133 MHz
RAM: 264 KB SRAM
Flash: 2 MB onboard QSPI
GPIO: 26 multi-function pins (3.3V logic — NOT 5V tolerant)
USB: Micro-USB 1.1 — used for flashing and serial output
Wi-Fi: 802.11n 2.4 GHz (Infineon CYW43439)

The Waveshare 2.13" e-Paper V3¶

Resolution: 250 × 122 pixels, black and white
Driver IC: SSD1680
Interface: SPI (4-wire, Mode 0)
Refresh: Full refresh ~2 sec, partial ~0.3 sec
Minimum refresh interval: 180 seconds between operations
Standby current: < 0.01 uA (practically zero)

Why C Instead of MicroPython¶

	C (Pico SDK)	MicroPython
Speed	Native machine code, 133 MHz both cores	Interpreted, ~100× slower for compute
Flash usage	Your code only	~700 KB for the interpreter alone
RAM	Full 264 KB available	~180 KB after interpreter overhead
Timing	Deterministic, microsecond precision	GC pauses, non-deterministic
Debugging	SWD breakpoints, printf, full GDB	REPL print statements only
Libraries	Pico SDK, direct register access	Limited to what's been ported

For a real-time pet with animations, input handling, and tight display refresh timing, C is the right choice.

Manual Setup Reference¶

If you prefer to run each command yourself instead of using the automated script, the full manual guide is available at dev-setup/pico-and-display-first-time-setup.md. It covers:

Installing the C/C++ SDK toolchain (with distro-specific instructions)
Docker build environment (optional)
Configuring VSCode for Pico cross-compilation
Building and flashing the serial Hello World
Connecting the display (header-on-header, pin mapping)
Building and flashing the display Hello World
Printf debugging and SWD hardware debugging
Comprehensive troubleshooting tables

Connecting the Display¶

The Pico W has male header pins soldered on. The Waveshare HAT has a female header socket that slides directly onto the Pico W headers.

Alignment¶

Hold the Pico W with the USB port facing you.
Hold the Waveshare HAT with its display face up and the 40-pin socket facing down.
Align pin 1 on both boards.
Press down firmly and evenly until the HAT is fully seated.

    Side view (seated correctly):

    ┌─────────────────────────┐  Waveshare HAT (display face up)
    │  ▓▓▓ e-ink display ▓▓▓ │
    ├─────────────────────────┤
    │ female socket ▼▼▼▼▼▼▼▼ │
    ├═════════════════════════┤  <-- flush, no gap
    │ male headers ▲▲▲▲▲▲▲▲  │
    ├─────────────────────────┤
    │    Raspberry Pi Pico W  │
    └────────[USB]────────────┘

Disconnect USB first

Always disconnect the Pico W from USB before attaching or removing the display. Voltage spikes can damage the e-ink panel.

Pin Mapping¶

The HAT routes these signals through its PCB from the 40-pin socket to the display:

e-Paper Signal	Function	Pico W GPIO	Pico W Pin #
VCC	3.3V power	3V3(OUT)	36
GND	Ground	GND	38
DIN	SPI MOSI	GP11 (SPI1 TX)	15
CLK	SPI clock	GP10 (SPI1 SCK)	14
CS	Chip select	GP9 (SPI1 CSn)	12
DC	Data/Command	GP8	11
RST	Reset	GP12	16
BUSY	Busy flag	GP13	17

Troubleshooting¶

Build Issues¶

Problem	Solution
`arm-none-eabi-gcc: command not found`	Toolchain not installed. Re-run Step 2
`PICO_SDK_PATH is not defined`	Set the environment variable (Step 4). Restart your terminal
`Could not find pico_sdk_import.cmake`	Copy it from the SDK (done automatically by the script in Step 7)
CMake error about missing submodules	Run `cd $PICO_SDK_PATH && git submodule update --init`

Flashing Issues¶

Problem	Solution
RPI-RP2 drive doesn't appear	Hold BOOTSEL before plugging in USB. Try a different cable — charge-only cables won't work
Drive appears but copy fails	Try `picotool load` instead. Check if the `.uf2` file is 0 bytes (build failed)

Serial Issues¶

Problem	Solution
`/dev/ttyACM0` doesn't exist	Pico not connected, charge-only cable, or firmware crashed before USB init
Permission denied on `/dev/ttyACM0`	Add yourself to the serial group — `uucp` on Arch, `dialout` on Debian (Step 5), then log out and back in
Serial monitor shows nothing	Baud rate must be 115200. Check that `stdio_init_all()` is in your code

Display Issues¶

Problem	Solution
Display completely blank	Check VCC is on 3V3(OUT) pin 36, not VBUS pin 40
Display flickers then goes blank	RST or BUSY wires swapped. Compare against the pin mapping table
Garbage/random pixels	Wrong driver version — confirm V3 on PCB silkscreen
`BUSY` pin always high	Display stuck mid-refresh. Disconnect power, wait 10 sec, reconnect, run Clear

Quick Reference Card¶

Action	Command
Build (serial)	`cd dev-setup/hello-world-serial/build && ninja`
Build (display)	`cd dev-setup/hello-world/build && ninja`
Flash	Hold BOOTSEL + plug USB, then `cp build/<name>.uf2 /run/media/$USER/RPI-RP2/`
Flash (picotool)	`picotool load build/<name>.uf2 && picotool reboot`
Serial monitor	`screen /dev/ttyACM0 115200`
Serial monitor (VSCode)	`Ctrl+Shift+P` > "Serial Monitor: Open Serial Monitor"
Clean rebuild	`rm -rf build && mkdir build && cd build && cmake -G Ninja -DPICO_SDK_PATH=$PICO_SDK_PATH -DPICO_BOARD=pico_w .. && ninja`
Build with Docker	`cd dev-setup && docker compose run --rm build`
