Pico W & Display — First-Time Setup

A complete, step-by-step walkthrough for setting up the Raspberry Pi Pico W development environment, verifying it with a serial-only hello world, physically connecting the Waveshare 2.13" e-Paper display, and building a hello world that draws to the screen.

This project runs entirely in C

No MicroPython, no CircuitPython. C gives us direct hardware control, deterministic timing, and the full performance of the RP2040's dual Cortex-M0+ cores. Every byte of flash and every CPU cycle counts on a microcontroller with 2 MB of storage and 264 KB of RAM.

Target audience: Someone with the hardware in hand and zero prior embedded development experience.

Platform: Linux (Arch/CachyOS — Debian/Ubuntu alternatives noted where they differ).

Automated Setup Script

Recommended: Use the interactive setup script

Before following the manual steps below, try the automated setup script. It walks you through the entire process with explanations, automates installs and builds, and lets you skip/quit/resume at any point.

python3 setup.py              # full interactive walkthrough
python3 setup.py --status     # see what's installed and what's missing
python3 setup.py --list       # list all 15 steps
python3 setup.py --step 7     # jump to a specific step
python3 setup.py --test-setup # install testing dependencies

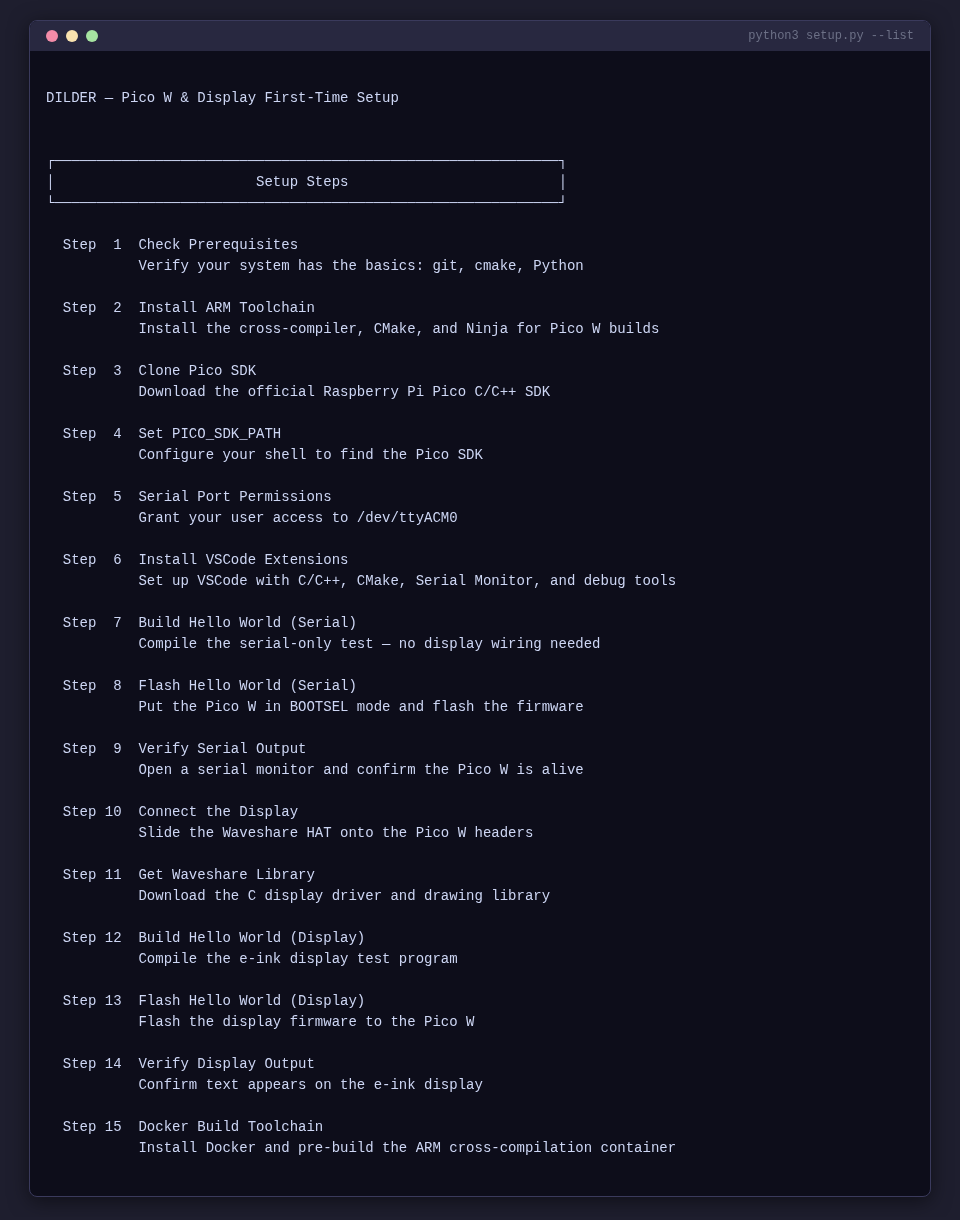

Setup CLI step list

The script handles 15 steps across three checkpoints:

Step Name Description
1 Check Prerequisites Detects distro, verifies git/cmake/Python/Tkinter/pyserial
2 Install ARM Toolchain Runs the correct package manager command
3 Clone Pico SDK Clones pico-sdk with submodules
4 Set PICO_SDK_PATH Adds export to your shell profile
5 Serial Port Permissions Adds user to uucp (Arch) or dialout (Debian)
6 Install VSCode Extensions Installs C/C++ (or clangd for Code OSS), CMake Tools, Cortex-Debug
7 Build Hello Serial CMake + Ninja build of serial-only test
8 Flash Hello Serial Guides BOOTSEL, auto-detects mount, copies UF2
9 Verify Serial Output Confirms serial and LED work (Checkpoint 1)
10 Connect the Display Guides HAT-on-header assembly
11 Get Waveshare Library Clones and copies C driver files
12 Build Hello Display Builds the e-ink display test
13 Flash Hello Display Flash display firmware
14 Verify Display Output Confirms text on display (Checkpoint 2)
15 Docker Build Toolchain Installs Docker and pre-builds the ARM container (Checkpoint 3)

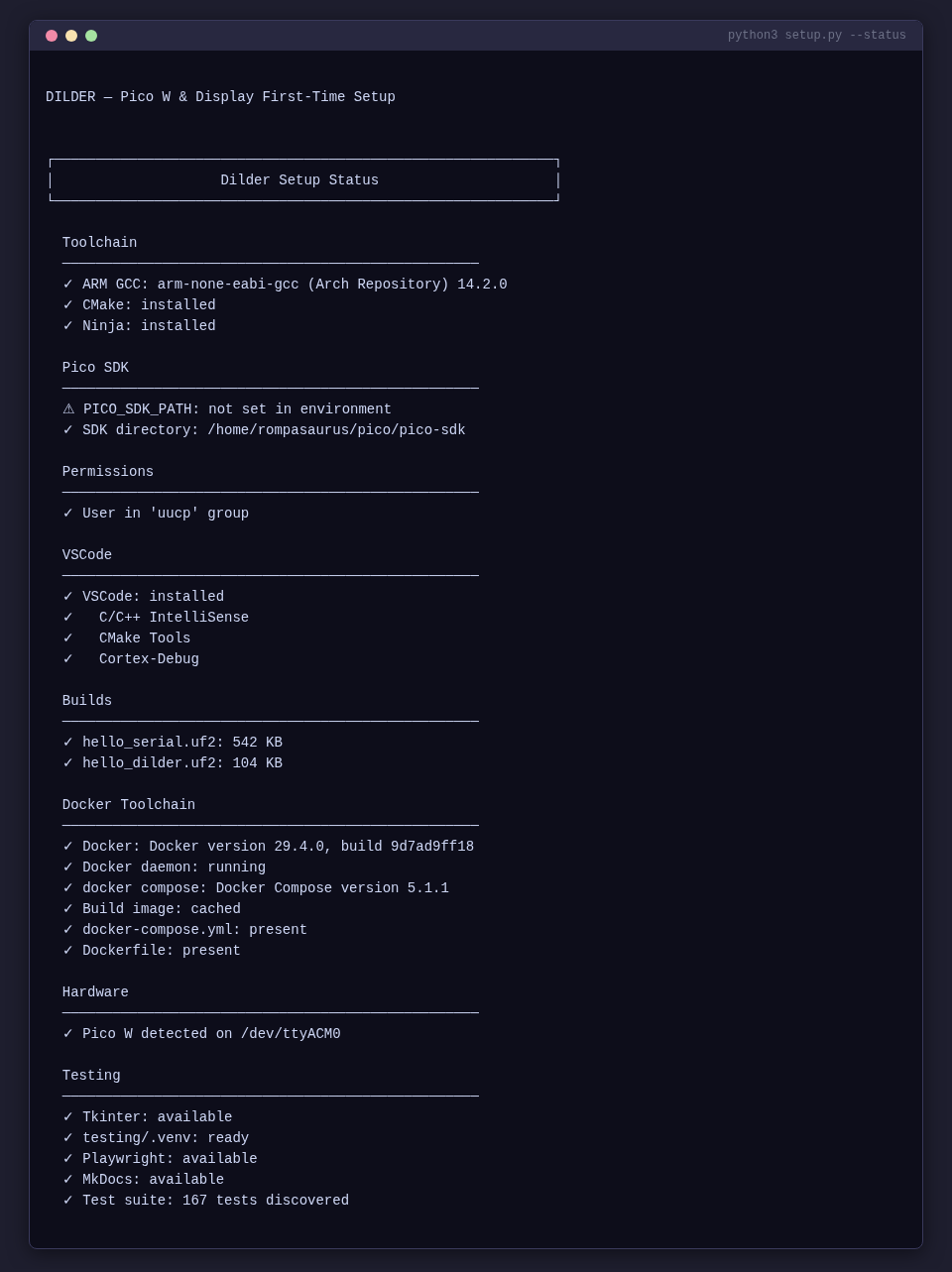

Use --status to check your current environment at a glance:

Setup CLI status dashboard

Table of Contents (Manual Guide)

  1. What You Need
  2. Understanding the Hardware
  3. Install the Pico C/C++ SDK Toolchain
  4. Set Up the Docker Build Environment (Optional)
  5. Configure VSCode for Pico Development
  6. Checkpoint 1 — Hello World Serial (No Wiring Needed)
  7. Connect the Display to the Pico W
  8. Checkpoint 2 — Hello World e-Ink Display
  9. Debugging
  10. Troubleshooting
  11. Next Steps

1. What You Need

Hardware

Item Notes
Raspberry Pi Pico W With male headers soldered on
Waveshare Pico-ePaper-2.13 SSD1680 driver, Pico-native module — plugs directly onto Pico W
Micro-USB data cable Must be a data cable, not charge-only — this is the #1 gotcha
Linux PC Arch/CachyOS, Ubuntu, Debian, or Fedora

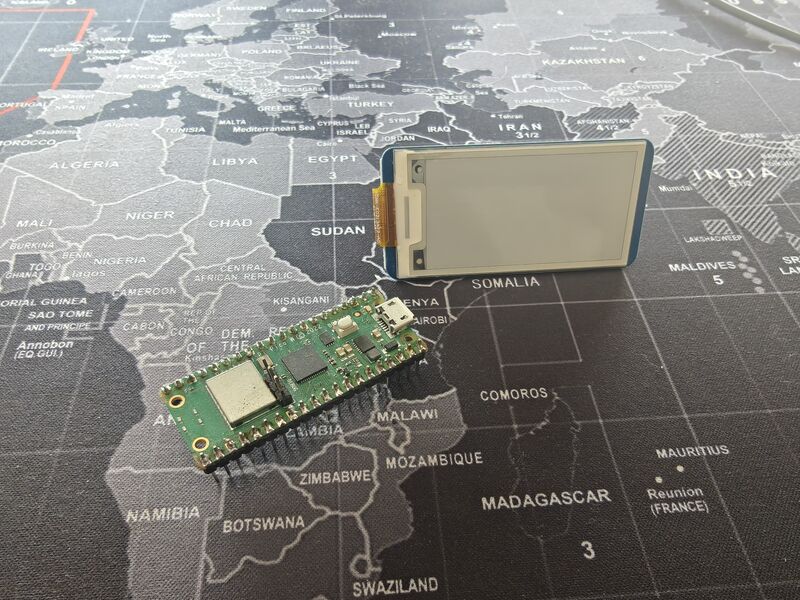

Pico W and e-Paper display — the two components you need

No breadboard or jumper wires needed

The Waveshare HAT has a female header socket that slides directly onto the Pico W's male header pins. No breadboard, no jumper wires — just push it on.

Software (installed in this guide)

Tool Purpose
arm-none-eabi-gcc ARM cross-compiler for the RP2040
cmake + ninja Build system used by the Pico SDK
pico-sdk Official Raspberry Pi Pico C/C++ SDK
picotool CLI utility for flashing and inspecting Pico boards
VSCode Editor and IDE
CMake Tools extension CMake integration for VSCode
Serial Monitor extension View USB serial output from the Pico W
Cortex-Debug extension On-chip debugging via SWD (optional)

2. Understanding the Hardware

The Pico W at a Glance

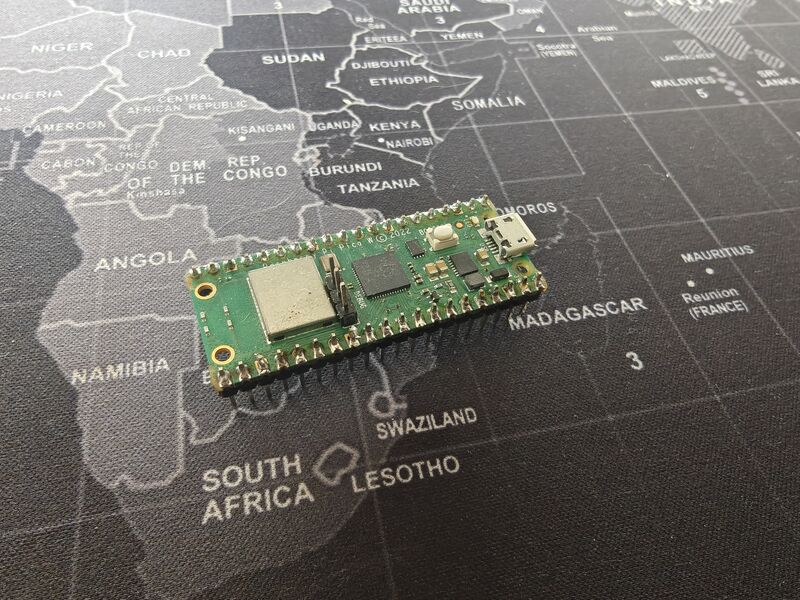

Raspberry Pi Pico W — top view

  • Chip: RP2040 — dual-core ARM Cortex-M0+ at 133 MHz
  • RAM: 264 KB SRAM
  • Flash: 2 MB onboard QSPI
  • GPIO: 26 multi-function pins (3.3V logic — NOT 5V tolerant)
  • USB: Micro-USB 1.1 — used for flashing and serial output
  • Wi-Fi: 802.11n 2.4 GHz (Infineon CYW43439)

The Waveshare 2.13" e-Paper V3 at a Glance

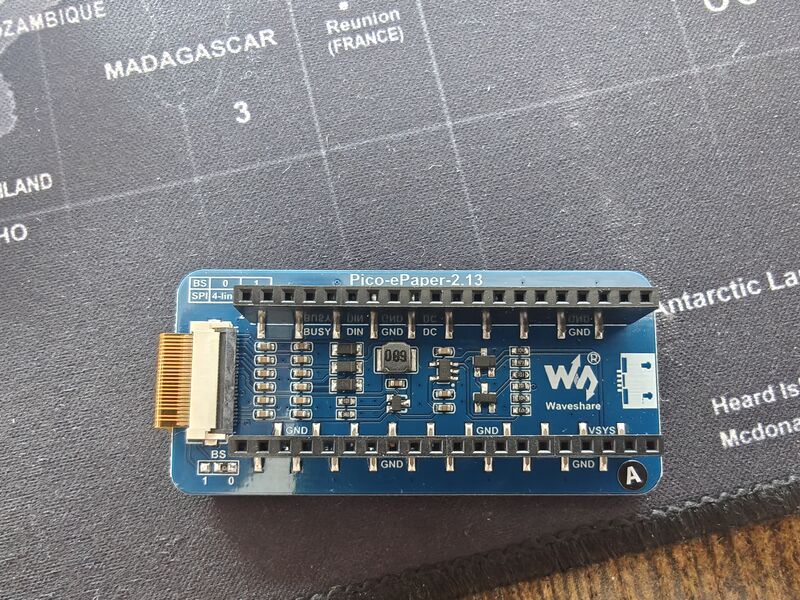

Waveshare e-Paper HAT — back side showing pin labels and SPI connections

  • Resolution: 250 x 122 pixels, black and white
  • Driver IC: SSD1680
  • Interface: SPI (4-wire, Mode 0)
  • Refresh: Full refresh ~2 sec, partial ~0.3 sec
  • Minimum refresh interval: 180 seconds between operations
  • Standby current: < 0.01 uA (practically zero)

How They Talk to Each Other

The display communicates over SPI (Serial Peripheral Interface). The Pico W has two SPI controllers (SPI0 and SPI1). We use SPI1 for the display, leaving SPI0 free for future peripherals.

The display needs 8 connections total: power (VCC + GND), four SPI signals (MOSI, CLK, CS, DC), a reset line, and a busy flag.

Why C Instead of MicroPython

C (Pico SDK) MicroPython
Speed Native machine code, 133 MHz both cores Interpreted, ~100x slower for compute
Flash usage Your code only ~700 KB for the interpreter alone
RAM Full 264 KB available ~180 KB after interpreter overhead
Timing Deterministic, microsecond precision GC pauses, non-deterministic
Debugging SWD breakpoints, printf, full GDB REPL print statements only
Libraries Pico SDK, direct register access Limited to what's been ported

For a real-time pet with animations, input handling, and tight display refresh timing, C is the right choice.

3. Install the Pico C/C++ SDK Toolchain

The setup script automates all of this

Steps 1-6 of python3 setup.py handle the entire toolchain installation automatically with distro detection. Here's what the prerequisite check looks like:

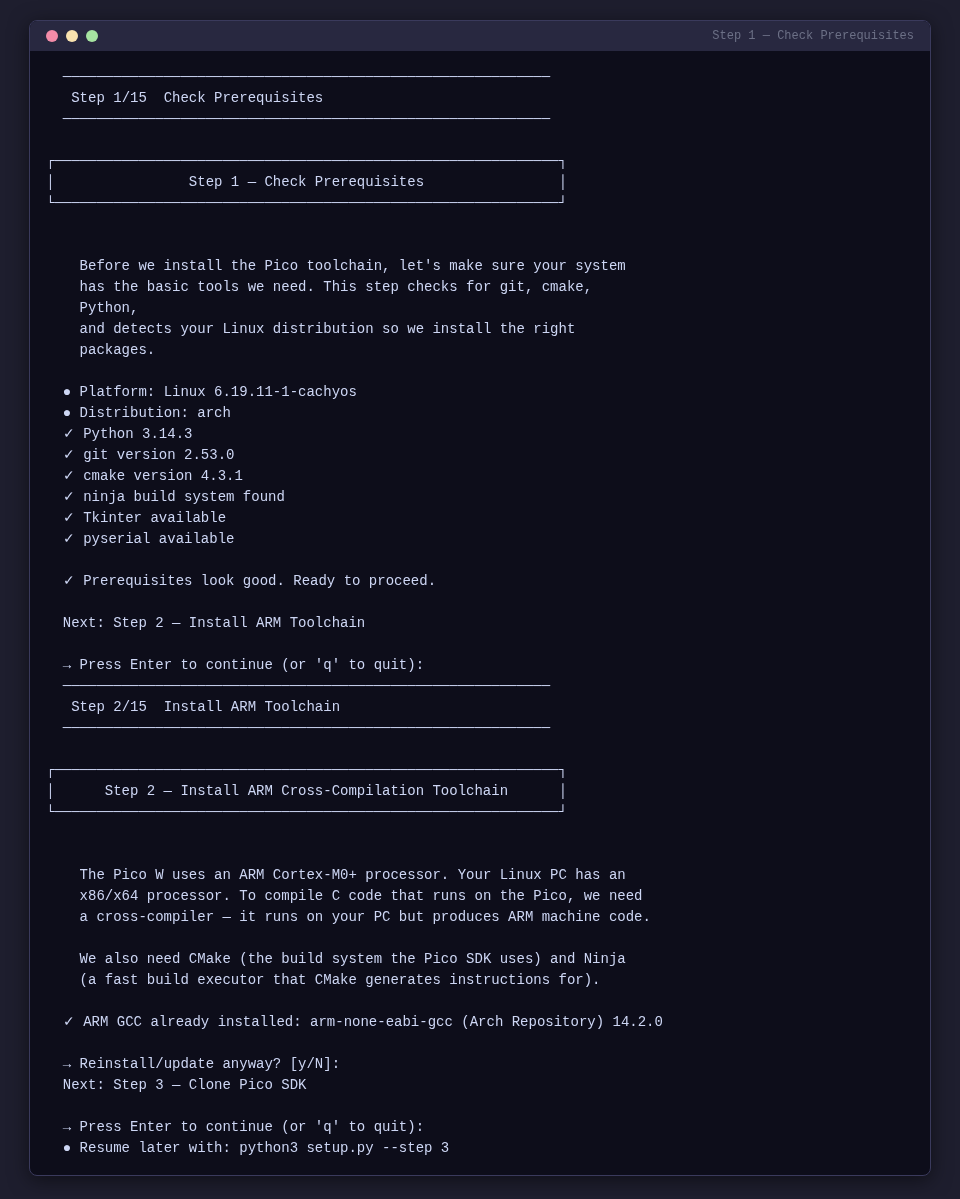

Step 1 — Prerequisites check

Step 3.1 — Install System Dependencies

sudo pacman -S --needed \
    arm-none-eabi-gcc \
    arm-none-eabi-newlib \
    cmake \
    ninja \
    python \
    git \
    base-devel

sudo apt update && sudo apt install -y \
    gcc-arm-none-eabi \
    libnewlib-arm-none-eabi \
    cmake \
    ninja-build \
    python3 \
    git \
    build-essential \
    libstdc++-arm-none-eabi-newlib

sudo dnf install -y \
    arm-none-eabi-gcc-cs \
    arm-none-eabi-newlib \
    cmake \
    ninja-build \
    python3 \
    git

Step 3.2 — Verify the Cross-Compiler

arm-none-eabi-gcc --version

You should see output like:

arm-none-eabi-gcc (GCC) 14.x.x
...

If this fails, the toolchain is not installed correctly. Do not proceed until this works.

Step 3.3 — Clone the Pico SDK

# Create a workspace for Pico development
mkdir -p ~/pico && cd ~/pico

# Clone the SDK
git clone --recurse-submodules https://github.com/raspberrypi/pico-sdk.git

# Verify it downloaded
ls pico-sdk/

You should see directories like src/, lib/, cmake/, etc.

Step 3.4 — Set the SDK Environment Variable

Add this to your shell profile:

# For zsh (~/.zshrc)
echo 'export PICO_SDK_PATH="$HOME/pico/pico-sdk"' >> ~/.zshrc
source ~/.zshrc

# For bash (~/.bashrc)
echo 'export PICO_SDK_PATH="$HOME/pico/pico-sdk"' >> ~/.bashrc
source ~/.bashrc

Verify:

echo $PICO_SDK_PATH
# Should print: /home/<your-username>/pico/pico-sdk

yay -S picotool

cd ~/pico
git clone https://github.com/raspberrypi/picotool.git
cd picotool && mkdir build && cd build
cmake .. && make -j$(nproc)
sudo make install

Step 3.6 — Serial Port Permissions

The group name depends on your distro:

sudo usermod -aG uucp $USER

sudo usermod -aG dialout $USER

Log out required

You must log out and back in (or reboot) for this to take effect. A new terminal window is not enough.

Verify after logging back in:

# Arch / CachyOS
groups | grep uucp

# Ubuntu / Debian
groups | grep dialout

4. Set Up the Docker Build Environment (Optional)

The setup script automates Docker installation

Step 15 of python3 setup.py handles Docker install, daemon setup, group permissions, and image pre-build:

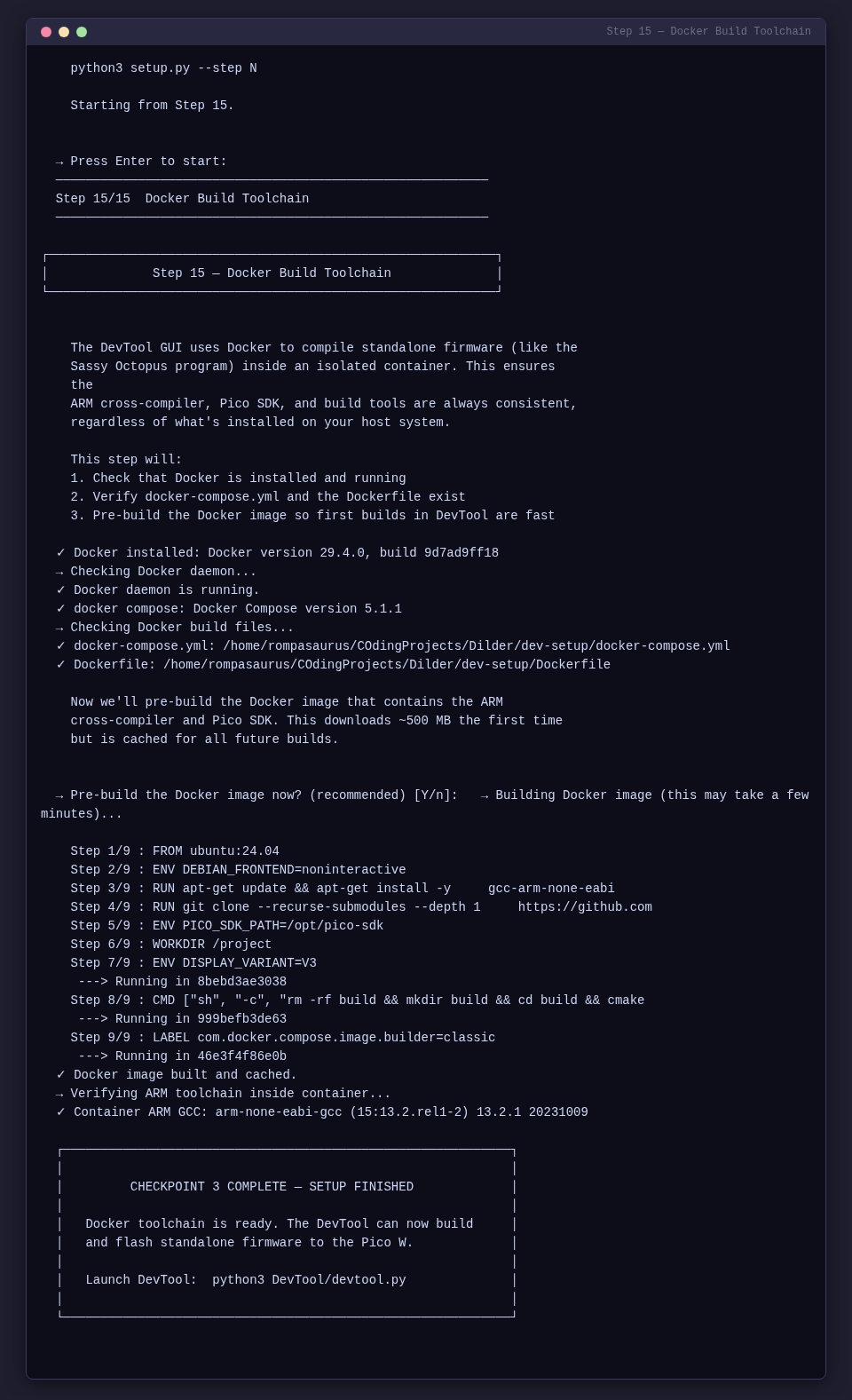

Step 15 — Docker Build Toolchain

If you prefer a containerized build environment for reproducibility, use the provided Docker setup in dev-setup/.

sudo pacman -S docker docker-compose
sudo systemctl enable --now docker
sudo usermod -aG docker $USER

sudo apt install docker.io docker-compose-v2
sudo systemctl enable --now docker
sudo usermod -aG docker $USER

Then build:

cd dev-setup/
docker compose build
docker compose run --rm build

5. Configure VSCode for Pico Development

Step 5.1 — Install VSCode

sudo pacman -S code

sudo apt install code

Step 5.2 — Install Required Extensions

code --install-extension ms-vscode.cpptools
code --install-extension ms-vscode.cmake-tools
code --install-extension twxs.cmake
code --install-extension ms-vscode.vscode-serial-monitor
code --install-extension marus25.cortex-debug
Extension Purpose
C/C++ IntelliSense, syntax highlighting, debugging
CMake Tools CMake project management, build, configure
CMake CMake syntax highlighting
Serial Monitor View serial output from the Pico W
Cortex-Debug ARM Cortex debugging via SWD (optional)

Step 5.3 — Configure CMake Tools

Create .vscode/settings.json:

{
    "cmake.generator": "Ninja",
    "cmake.configureSettings": {
        "PICO_SDK_PATH": "${env:PICO_SDK_PATH}",
        "PICO_BOARD": "pico_w"
    },
    "cmake.sourceDirectory": "${workspaceFolder}/dev-setup/hello-world-serial",
    "cmake.buildDirectory": "${workspaceFolder}/dev-setup/hello-world-serial/build",
    "C_Cpp.default.configurationProvider": "ms-vscode.cmake-tools",
    "files.associations": { "*.h": "c", "*.c": "c" }
}

Create .vscode/cmake-kits.json:

[
    {
        "name": "Pico W ARM GCC",
        "compilers": {
            "C": "/usr/bin/arm-none-eabi-gcc",
            "CXX": "/usr/bin/arm-none-eabi-g++"
        },
        "isTrusted": true
    }
]

Create .vscode/c_cpp_properties.json:

{
    "configurations": [
        {
            "name": "Pico W",
            "includePath": [
                "${workspaceFolder}/dev-setup/**",
                "${env:PICO_SDK_PATH}/src/**"
            ],
            "defines": ["PICO_BOARD=pico_w", "LIB_PICO_STDIO_USB"],
            "compilerPath": "/usr/bin/arm-none-eabi-gcc",
            "cStandard": "c11",
            "intelliSenseMode": "gcc-arm"
        }
    ],
    "version": 4
}

Select the build kit: Ctrl+Shift+P > "CMake: Select a Kit" > "Pico W ARM GCC"

6. Checkpoint 1 — Hello World Serial (No Wiring Needed)

Goal: Verify the entire toolchain before touching the display. Just the Pico W plugged into USB.

The setup script handles build + flash + verify

Steps 7-9 of python3 setup.py automate the build, flash (with BOOTSEL detection), and serial verification:

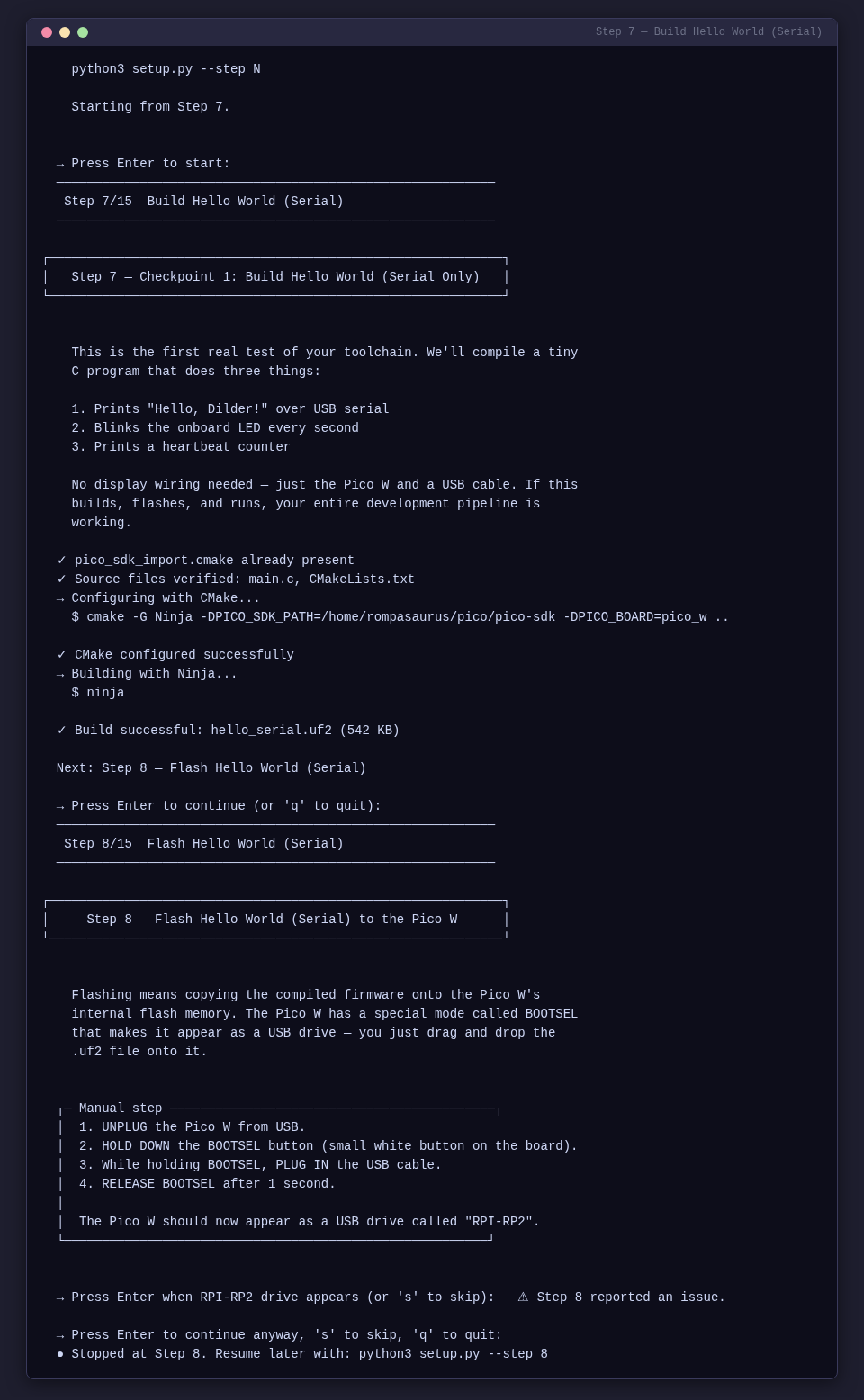

Step 7 — Build Hello Serial

Build

cp $PICO_SDK_PATH/external/pico_sdk_import.cmake \
   dev-setup/hello-world-serial/

cd dev-setup/hello-world-serial
mkdir -p build && cd build
cmake -G Ninja -DPICO_SDK_PATH=$PICO_SDK_PATH -DPICO_BOARD=pico_w ..
ninja

Flash

  1. Unplug the Pico W.
  2. Hold BOOTSEL, plug in USB, release after 1 second.
  3. Copy: cp build/hello_serial.uf2 /run/media/$USER/RPI-RP2/

Verify

Open serial monitor: Ctrl+Shift+P > "Serial Monitor" > port /dev/ttyACM0 > baud 115200

=========================
  Hello, Dilder!
  Pico W is alive.
=========================

Heartbeat #1  |  LED: ON
Heartbeat #2  |  LED: OFF
...

The onboard LED should blink every second. If this works, your entire toolchain is verified.

7. Connect the Display to the Pico W

The setup script shows detailed connection instructions

Step 10 of python3 setup.py provides a guided walkthrough with ASCII diagrams:

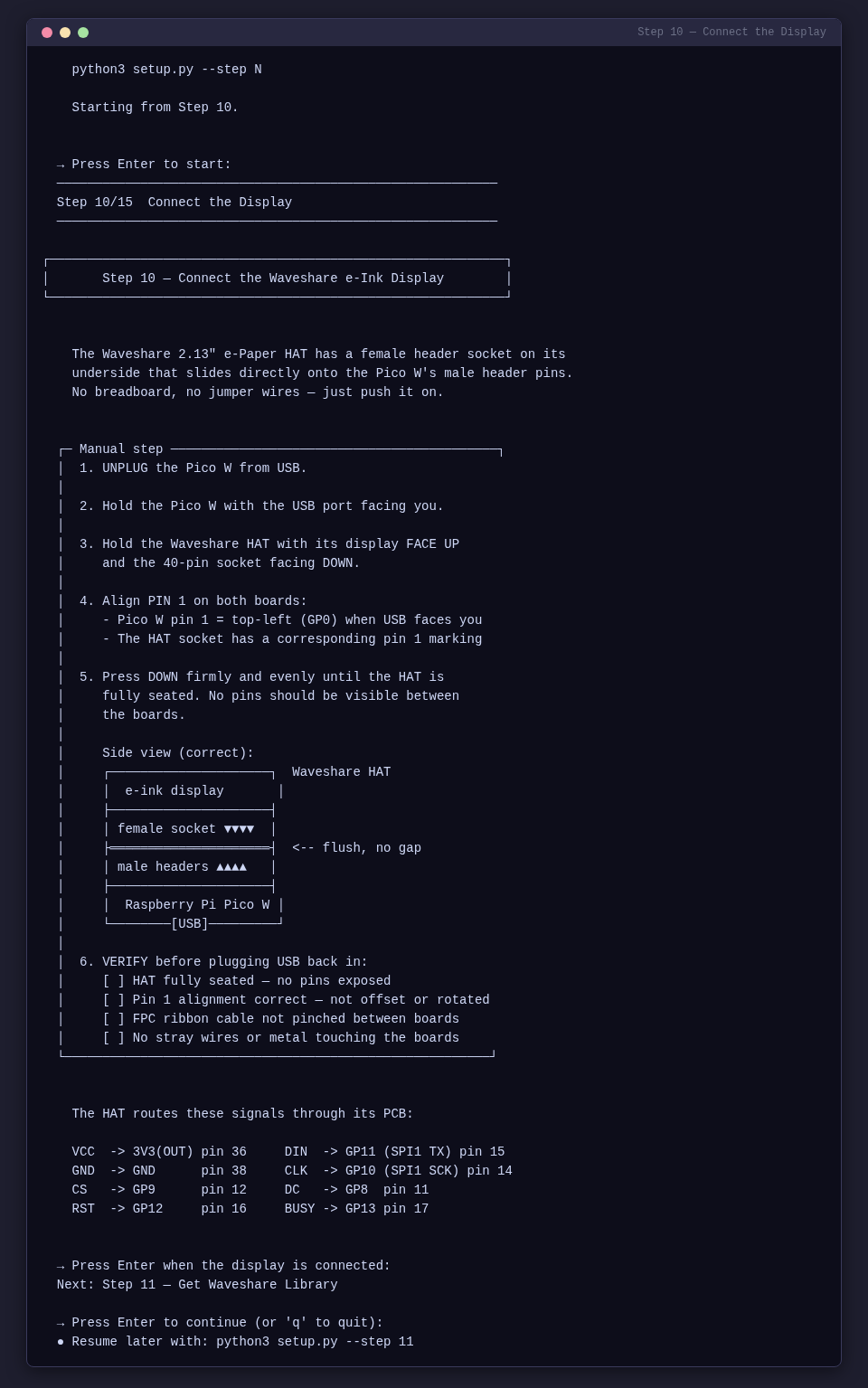

Step 10 — Connect the Display

Power off before connecting

Disconnect the Pico W from USB before attaching the display. Voltage spikes can damage the e-ink panel.

Direct Header Connection

The Pico W has male header pins soldered on. The Waveshare HAT has a female header socket on its underside. The display slides directly onto the Pico W's headers — no breadboard or jumper wires required.

Step 7.1 — Align the Headers

  1. Hold the Pico W with the USB port facing you.
  2. Hold the Waveshare HAT with its display face up and the 40-pin socket facing down.
  3. Align pin 1 on both boards. Pin 1 on the Pico W is the top-left pin (GP0) when the USB port faces you. The HAT's socket has a corresponding pin 1 marking.
  4. The HAT's header socket covers pins 1-40 of the Pico W.

Step 7.2 — Seat the Display

  1. Line up all pins carefully — do not force it at an angle.
  2. Press down firmly and evenly until the HAT is fully seated on the Pico W headers.
  3. The HAT should sit snug with no pins visible between the boards.

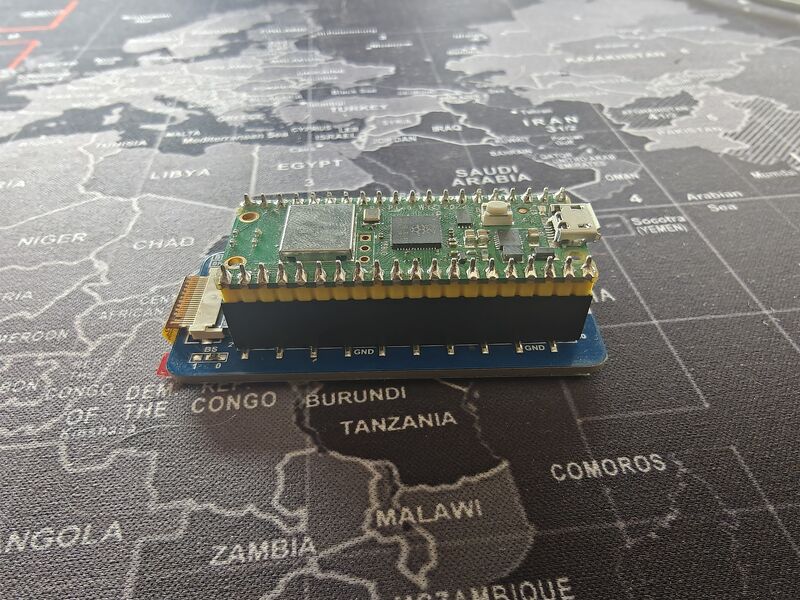

Pico W mounted on the Waveshare HAT — side view showing header connection

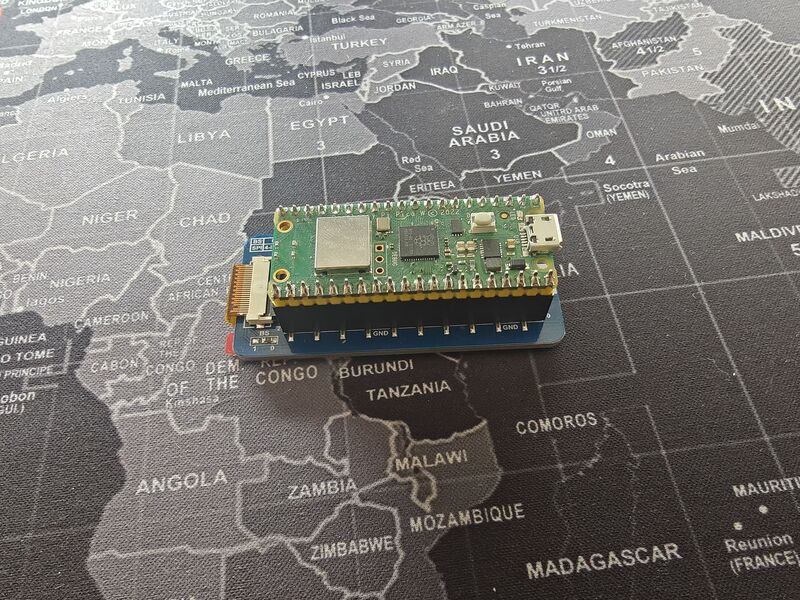

Pico W mounted on the Waveshare HAT — top view

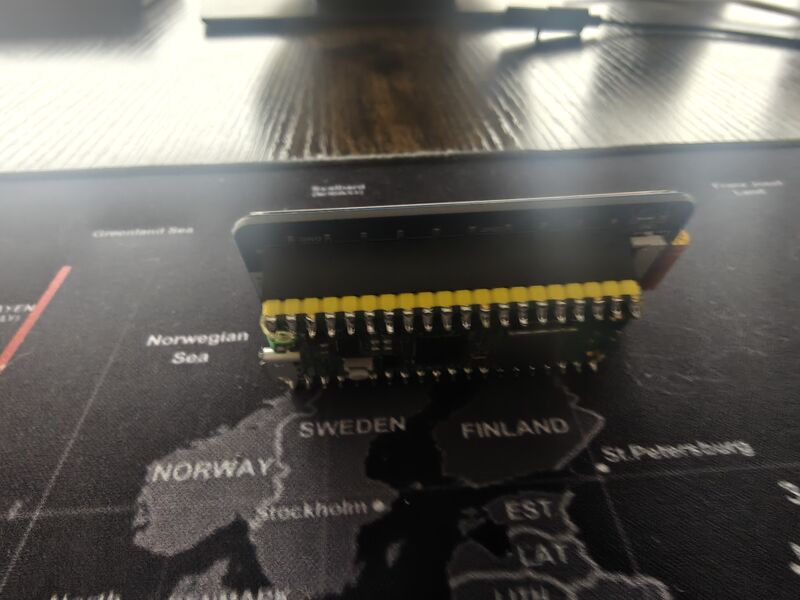

Assembled unit — back view showing pin headers

Step 7.3 — Verify the Connection

Before plugging in USB, check:

  • [ ] The HAT is fully seated — no pins are exposed between the boards.
  • [ ] Pin 1 alignment is correct — the HAT is not offset or rotated.
  • [ ] The display's FPC ribbon cable is not pinched between the boards.
  • [ ] Nothing is shorting — no stray wires or metal touching the boards.

Pin Mapping (for reference)

The HAT uses these Pico W pins through the direct header connection:

e-Paper Signal Function Pico W GPIO Pico W Pin #
VCC 3.3V power 3V3(OUT) 36
GND Ground GND 38
DIN SPI MOSI GP11 (SPI1 TX) 15
CLK SPI clock GP10 (SPI1 SCK) 14
CS Chip select GP9 (SPI1 CSn) 12
DC Data/Command GP8 11
RST Reset GP12 16
BUSY Busy flag GP13 17

These are the same pins used in the Waveshare Pico examples. The HAT routes them through its PCB from the 40-pin socket.

8. Checkpoint 2 — Hello World e-Ink Display

Goal: Draw text on the e-ink display using the Waveshare C library.

The setup script automates the library download, build, and flash

Steps 11-14 of python3 setup.py handle everything:

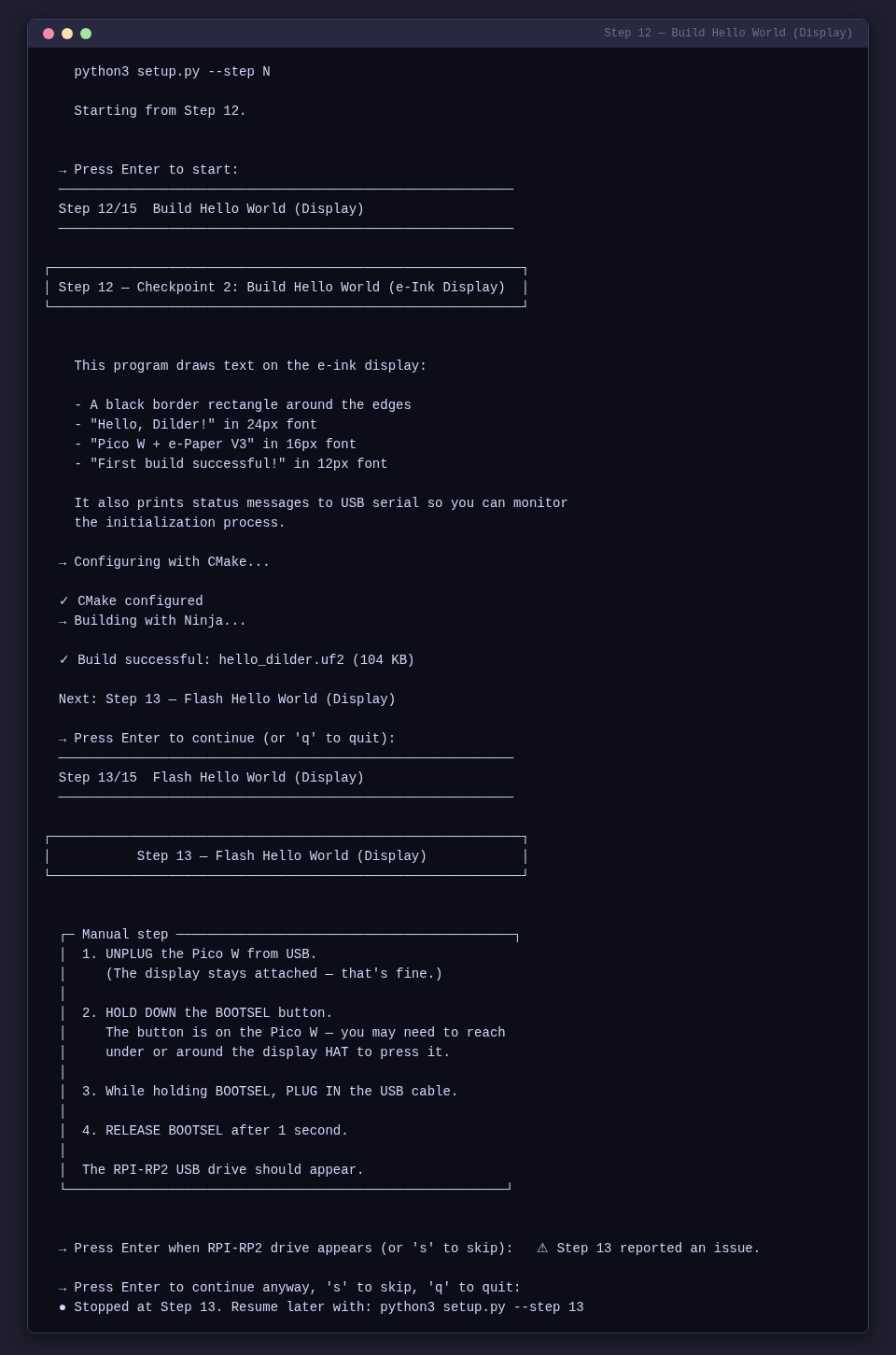

Step 12 — Build Hello Display

Get the Waveshare C Library

cd /tmp && git clone https://github.com/waveshare/Pico_ePaper_Code.git
cd ~/CodingProjects/Dilder/dev-setup/hello-world
mkdir -p lib/Config lib/e-Paper lib/GUI lib/Fonts

cp /tmp/Pico_ePaper_Code/c/lib/Config/DEV_Config.{h,c} lib/Config/
cp /tmp/Pico_ePaper_Code/c/lib/Config/Debug.h lib/Config/
cp /tmp/Pico_ePaper_Code/c/lib/e-Paper/EPD_2in13_V3.{h,c} lib/e-Paper/
cp /tmp/Pico_ePaper_Code/c/lib/GUI/GUI_Paint.{h,c} lib/GUI/
cp /tmp/Pico_ePaper_Code/c/lib/Fonts/fonts.h lib/Fonts/
cp /tmp/Pico_ePaper_Code/c/lib/Fonts/font{8,12,16,20,24}.c lib/Fonts/

cp $PICO_SDK_PATH/external/pico_sdk_import.cmake .
rm -rf /tmp/Pico_ePaper_Code

Build

mkdir -p build && cd build
cmake -G Ninja -DPICO_SDK_PATH=$PICO_SDK_PATH -DPICO_BOARD=pico_w ..
ninja

Flash

  1. Unplug, hold BOOTSEL, plug in, release.
  2. cp build/hello_dilder.uf2 /run/media/$USER/RPI-RP2/

Verify

Serial output:

Hello, Dilder!
Initializing e-Paper display...
Display initialized.
Drawing to display...
Display updated. Entering sleep mode.
Heartbeat: 1

The display should show:

  • A black border rectangle
  • "Hello, Dilder!" in 24px font
  • "Pico W + e-Paper V3" in 16px font
  • "First build successful!" in 12px font

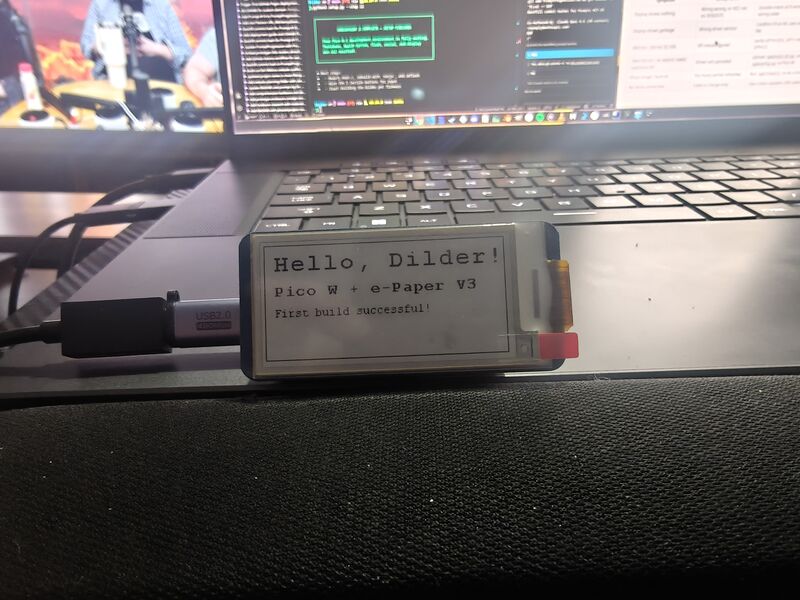

Hello, Dilder! running on the e-ink display — proof of life

If text appears on the display — the full hardware stack is working.

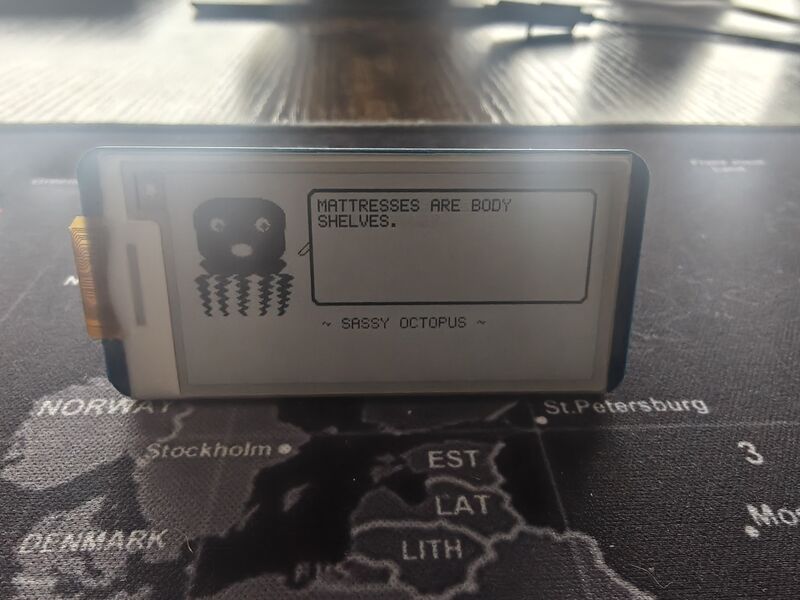

Sassy Octopus running standalone on the Pico W

9. Debugging

Printf Debugging (USB Serial)

Add printf() anywhere — output appears on the serial monitor at 115200 baud.

printf("Display BUSY pin: %d\n", gpio_get(13));
printf("Buffer size: %d bytes\n", image_size);

Hardware Debugging with SWD (Advanced)

For breakpoint debugging, you need a second Pico as a debug probe. See the full guide in dev-setup/ for SWD wiring and configuration.

10. Troubleshooting

Problem Solution
arm-none-eabi-gcc: command not found Toolchain not installed — re-run Step 3.1
PICO_SDK_PATH is not defined Set the env var (Step 3.4), restart terminal
RPI-RP2 drive doesn't appear Hold BOOTSEL before plugging in. Try a different cable
/dev/ttyACM0 doesn't exist Wrong cable (charge-only), or firmware crashed
Permission denied on serial Add to serial group: uucp on Arch/CachyOS, dialout on Ubuntu/Debian, then log out and back in
Serial shows nothing Baud rate must be 115200
Display blank Check HAT is fully seated on headers, pin 1 aligned
Garbage pixels Wrong driver version — confirm V3 on PCB silkscreen
Display flickers then blank HAT not seated properly — reseat it firmly
Old image stuck E-ink retains last image — flash code that calls EPD_2in13_V3_Clear()

11. Next Steps

  1. Modify the text — Change strings in main.c, rebuild, flash.
  2. Add button input — Wire the 5 tactile buttons (see Wiring & Pinout).
  3. Draw graphics — GUI_Paint supports lines, rectangles, circles, bitmaps.
  4. Try partial refresh — EPD_2in13_V3_Display_Partial() for fast updates.
  5. Build the firmware scaffold — Start the Dilder pet logic.
